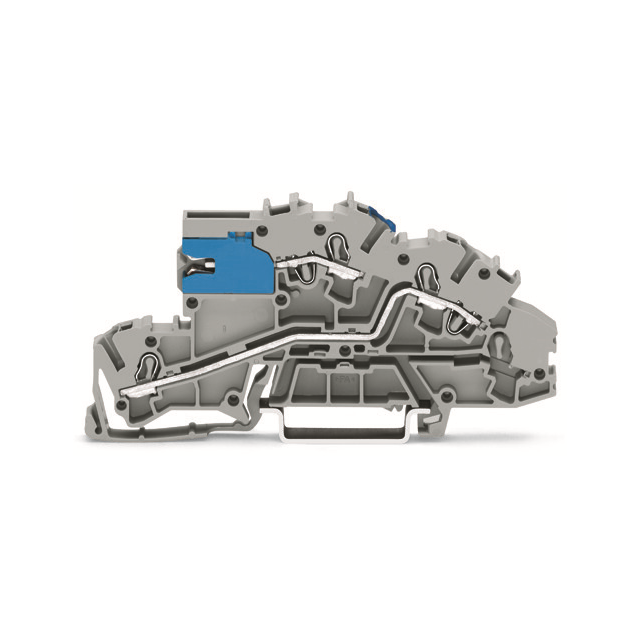

2003-7640

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Voltage - UL :

-

Height :

96

Inflammability class of insulation material according to with UL94 :

V0

Product Status :

Active

Wire Gauge or Range - AWG :

12-22 AWG

Manufacturer :

Wago

Fuse Type :

-

HTS :

8536.90.40.00

Mounting Type :

DIN Rail

ECCN (US) :

EAR99

Connectable conductor cross section fine-strand with cable end sleeve :

0.75 - 2.5

Type :

Terminal Block

Connectable conductor cross section multi-wired :

0.25 - 2.5

Rated current In :

32

Connectable conductor cross section fine-strand without cable end sleeve :

0.25 - 4

EU RoHS :

Compliant

Current - IEC :

32 A

Width :

5.2

Color :

Gray

Connectable conductor cross section solid-core :

0.75 - 4

Disconnect Type :

-

Mounting :

T DIN RAIL

Termination Method :

Spring Clamp

Maximum Current Rating (A) :

32

Depth :

42.3

Series :

TOPJOB®S

Number of Circuits :

2

Flammability Rating :

UL94 V-0

Features :

-

RoHS :

yes

Tradename :

CAGE CLAMP?

Package :

Box

Voltage - IEC :

400V

Termination Style :

Push In, Spring

Number of Levels :

2

Terminal - Width :

5.2mm

Number of Positions :

3

Wire Gauge or Range - mm² :

0.25-4mm²

Automotive :

No

Stripping Length :

10mm ~ 12mm

Number of Contacts :

3

Material Flammability Rating :

UL94 V-0

Material - Insulation :

Polyamide (PA66), Nylon 6/6

PPAP :

No

Length :

96
