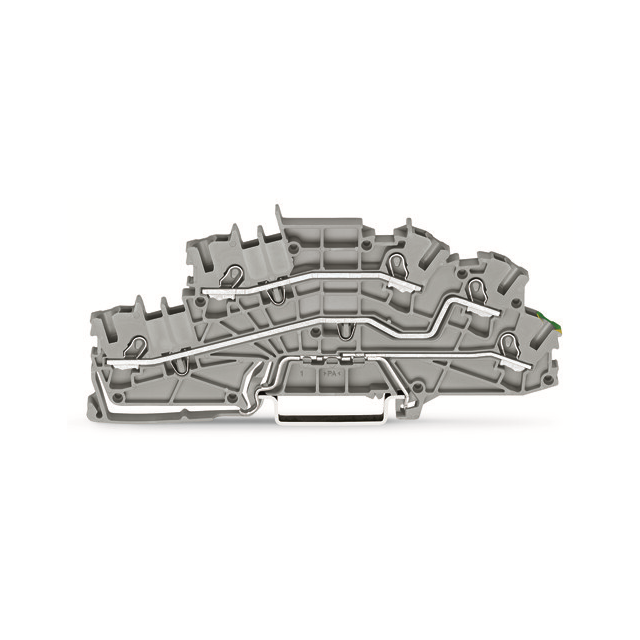

2003-6645

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Mounting Type :

DIN Rail

Product Status :

Active

Connectable conductor cross section fine-strand without cable end sleeve :

0.25 - 4

Disconnect Type :

-

PPAP :

No

Termination Method :

Spring Clamp

RoHS :

yes

Manufacturer :

Wago

Number of Positions :

5

Height :

110

HTS :

8536.90.40.00

Current - IEC :

28 A

Series :

TOPJOB®S

Connectable conductor cross section solid-core :

0.75 - 4

Type :

Terminal Block

Connectable conductor cross section fine-strand with cable end sleeve :

0.75 - 2.5

Length :

110

Number of Contacts :

5

Termination Style :

Push In, Spring

Automotive :

No

Color :

Gray

Depth :

45.2

Fuse Type :

-

Inflammability class of insulation material according to with UL94 :

V0

Voltage - UL :

300V

Terminal - Width :

5.2mm

ECCN (US) :

EAR99

Number of Circuits :

3

Package :

Box

Current - UL :

20 A

Wire Gauge or Range - AWG :

12-22 AWG

Number of Levels :

3; 1 Grounded

Tradename :

CAGE CLAMP?

Width :

5.2

Features :

-

Maximum Current Rating (A) :

20

Material Flammability Rating :

UL94 V-0

Wire Gauge or Range - mm² :

0.25-4mm²

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Connectable conductor cross section multi-wired :

0.25 - 2.5

Mounting :

T DIN RAIL

Stripping Length :

10mm ~ 12mm

EU RoHS :

Compliant

Rated current In :

20

Voltage - IEC :

400V
