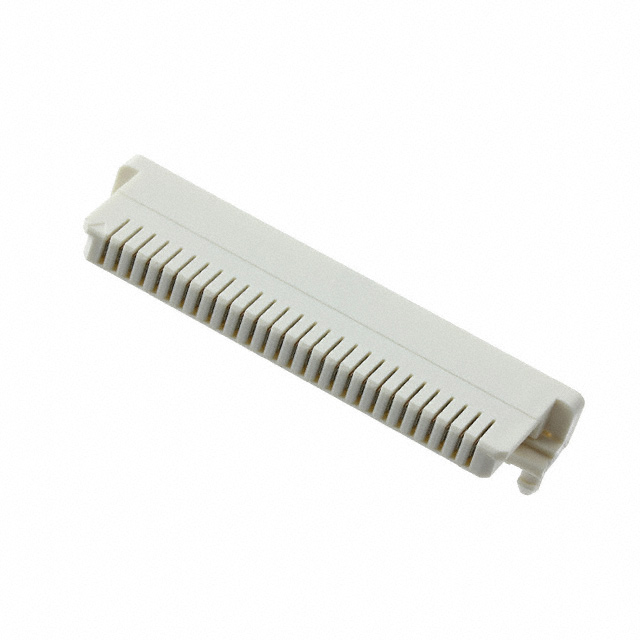

2-917360-8
Or copy the link below:
- Mfr.Part #
- 2-917360-8
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 28POS R/A TIN
- Stock
- 19,321
- In Stock ：
- 19,321
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Arrays, Edge Type, Mezzanine (Board to Board)
- HTS Code :
- 8536.69.40.40
- Number of Rows :
- 2
- Option :
- GENERAL PURPOSE
- Contact Finish Thickness :
- 31.5µin (0.80µm)
- Mounting Type :
- Through Hole, Right Angle
- Contact Plating :
- Tin
- Height Above Board :
- 0.213 (5.40mm)
- IEC Conformance :
- No
- Mixed Contacts :
- No
- Packaging :
- Tray
- Reach Compliance Code :
- Unknown
- ECCN Code :
- EAR99
- ELV :
- Compliant
- Contact Finish - Mating :
- NOT SPECIFIED
- Mated Stacking Heights :
- --
- MIL Conformance :
- No
- Number of Positions :
- 28
- Pbfree Code :
- yes
- Housing Material :
- Nylon
- Package :
- Tray
- Series :
- --
- Product Status :
- Active
- Connector Type :
- Non-Gendered, Receptacle
- Mount :
- Through Hole
- RoHS Status :
- RoHS Compliant
- Contact Finish :
- Tin
- Base Product Number :
- 917360
- Gender :
- FEMALE
- Features :
- Board Lock
- Filter Feature :
- No
- Pitch :
- 1.2446mm
- Total Number of Contacts :
- 28
- Termination Type :
- Solder
- DIN Conformance :
- No
- Contact Material :
- Bronze
- Datasheets
- 2-917360-8
Non-Gendered, Receptacle Tray 2 Rows 1.2446mm Through Hole, Right Angle 28 Positions -- Tin Bronze
2-917360-8 Overview
A Non-Gendered, Receptacle package is included with it.Packaging is performed using a Tray case.Its mounting type is Through Hole, Right Angle.It is part of the -- Series of products.If you wish to mount this part, you will need to use a Through Hole socket.
2-917360-8 Features
-- series
Package / Case: Tray
Mounting Type:Through Hole, Right Angle
2-917360-8 Applications
There are a lot of TE Connectivity / AMP
2-917360-8 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
