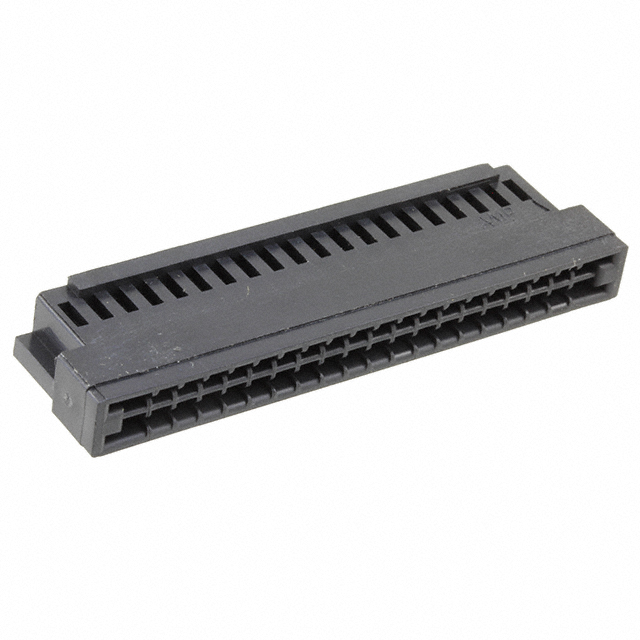

2-88179-2

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

FFC, FPC (Flat Flexible) Connector Housings

Wire Gauge (Min) :

22 AWG

Body/Shell Style :

Receptacle

Housing Color :

Black

Mount :

Free Hanging

Operating Temperature :

-65°C~105°C

Locking Feature :

Detent Lock

Factory Lead Time :

23 Weeks

UL Flammability Code :

94V-0

RoHS Status :

RoHS Compliant

Wire/Cable Type :

Flat Flex

Sealable :

No

Mixed Contacts :

No

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Connector Type :

Housing for Female Contacts

Lifecycle Status :

ACTIVE (Last Updated: 1 week ago)

Rated Current (Signal) :

2A

Total Number of Contacts :

40

IEC Conformance :

No

Depth :

15.24mm

Circuit Application :

Signal

Packaging :

Bulk

Option :

GENERAL PURPOSE

Insulation Resistance :

5GOhm

Pitch :

0.100 2.54mm

Reliability :

COMMERCIAL

Number of Positions :

40

Current Rating :

1.5A

Flammability Rating :

UL94 V-0

ECCN Code :

EAR99

Wire Gauge :

22-32 AWG

Material Flammability Rating :

UL94 V-0

Operating Supply Voltage :

300V

FFC, FCB Thickness :

0.015mm

Termination Type :

IDC

Polarization Key :

POLARIZED HOUSING

Gender :

FEMALE

Flat Flex Type :

FFC, Discrete Wire

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Feature :

Positions Stamped

Body Breadth :

0.331 inch

Reference Standard :

UL

Length :

57.15mm

Number of Rows :

2

MIL Conformance :

No

ELV :

Compliant

Contact Style :

SQ PIN-SKT

Published :

1997

Row Spacing :

2.54 mm

Contact Pattern :

RECTANGULAR

Pbfree Code :

yes

DIN Conformance :

No

Orientation :

Straight

Note :

Contacts Not Included

Wire Gauge (Max) :

32 AWG

Mating Alignment :

With

Insulation Diameter :

0.045 ~ 0.069 (1.14mm ~ 1.75mm)

Filter Feature :

No

Housing Material :

Polyamide (PA), Nylon, Glass Filled
