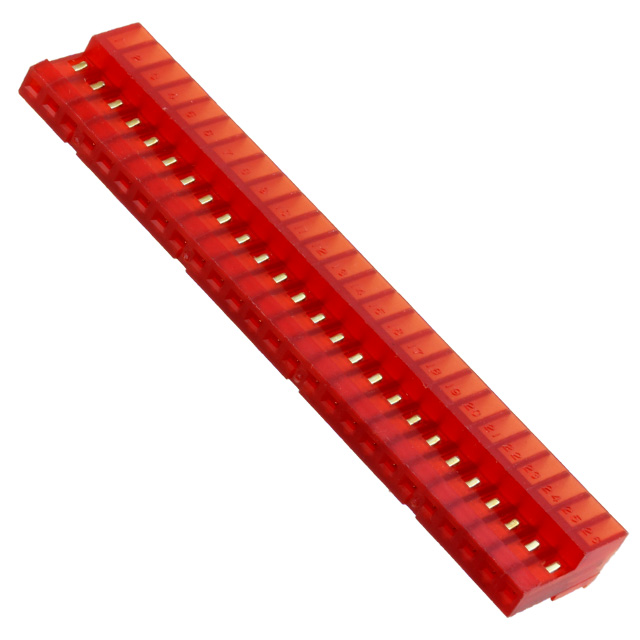

2-640440-6

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Free Hanging, Panel Mount

Body/Shell Style :

PLUG

Fastening Type :

Ramp

RoHS Status :

RoHS Compliant

MIL Conformance :

No

Connector Type :

Connector, Receptacle, Socket

ELV :

Non-Compliant

Mount :

Cable, Free Hanging

Mixed Contacts :

No

Option :

GENERAL PURPOSE

Approval Agency :

CSA

Wire/Cable Type :

Discrete

Contact Plating :

Lead, Tin

Plating Thickness :

2.03μm

Contact Finish Thickness :

80.0µin (2.03µm)

Termination :

IDC

HTS Code :

8536.69.40.40

Cable Termination :

IDC

Orientation :

RIGHT ANGLE

Features :

Closed End

Height :

6.99mm

ECCN Code :

EAR99

Wire Gauge :

22 AWG

Filter Feature :

No

Lead Free :

Not Applicable

Rated Current (Signal) :

4A

Mounting Type :

Free Hanging (In-Line), Right Angle

Contact Pattern :

RECTANGULAR

Body Breadth :

0.52 inch

Shrouding :

No

Insulation Diameter :

1.52 mm

Contact Style :

SQ PIN-SKT

Voltage - Rated AC :

250V

Pitch :

2.54mm

Length :

66.04mm

IEC Conformance :

No

Wire/Cable Gauge :

22 AWG

Number of Positions :

26

Contact Finish :

Tin-Lead

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Contact Gender :

FEMALE

Contact Material :

COPPER ALLOY

UL Flammability Code :

94V-2

Number of Rows :

1

Wire Type :

Discrete or Ribbon Cable

Series :

MTA-100

DIN Conformance :

No

Contact Resistance :

6mOhm

Max Voltage Rating (AC) :

250V

Packaging :

Bulk

Housing Material :

Nylon

Number of Contacts :

26

Contact Type :

Female Socket

Row Spacing :

--

Depth :

6.99mm

Contact Rating (Current) :

5A

Reliability :

COMMERCIAL

Pbfree Code :

No

Flammability Rating :

UL94 V-2

Wire Size (Min) :

28 AWG

Min Operating Temperature :

-67°C

Max Operating Temperature :

221°C

JESD-609 Code :

e0

Color :

Red

Dielectric Withstanding Voltage :

750VAC V
