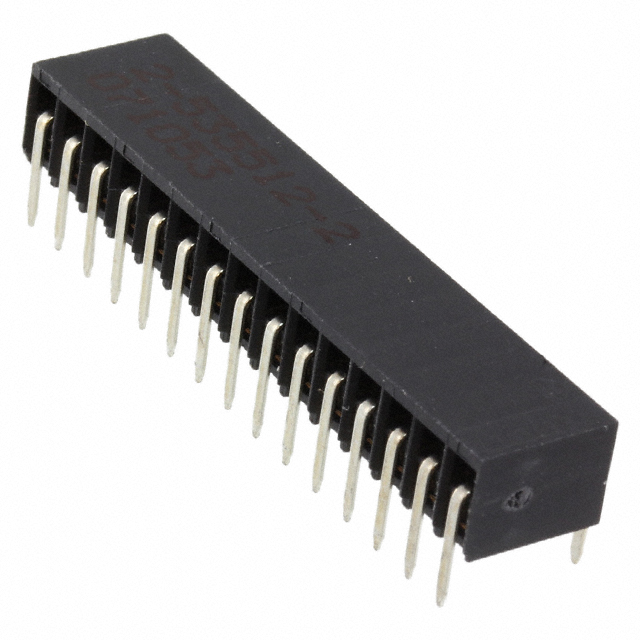

2-535512-2
Or copy the link below:
- Mfr.Part #
- 2-535512-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 30POS 0.1 GOLD PCB R/A
- Stock
- 20,296
- In Stock ：
- 20,296
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Receptacles, Female Sockets
- Mount :
- Through Hole
- Contact Length - Post :
- 0.115 2.92mm
- Pitch - Mating :
- 0.100 2.54mm
- Contact Type :
- Female Socket
- PCB Mount Retention :
- Without
- Row Spacing - Mating :
- 0.100 (2.54mm)
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Mating Post Length :
- 3mm
- Option :
- GENERAL PURPOSE
- Contact Shape :
- Square
- Lead Free :
- Contains Lead
- Length - Tail :
- 2.92mm
- Operating Supply Voltage :
- 333V
- Current Rating :
- 2A
- Orientation :
- RIGHT ANGLE
- Number of Positions Loaded :
- All
- Sealable :
- No
- Number of Positions :
- 30
- MIL Conformance :
- No
- PCB Thickness :
- 2.4mm
- Flammability Rating :
- UL94 V-0
- PCB Mounting Orientation :
- RIGHT ANGLE
- Packaging :
- Tube
- Termination :
- Solder
- Published :
- 2006
- Contact Finish Thickness - Post :
- 50.0μin 1.27μm
- Depth :
- 8.13mm
- Filter Feature :
- No
- Series :
- AMPMODU Mod II
- DIN Conformance :
- No
- Material Flammability Rating :
- UL94 V-0
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Pbfree Code :
- No
- Contact Finish - Mating :
- Gold
- Insulation Material :
- Polyester, Glass Filled
- Lead Length :
- 2.92mm
- Number of Rows :
- 2
- PCB Contact Pattern :
- RECTANGULAR
- Length :
- 38.1mm
- Height :
- 6.0452mm
- Reliability :
- COMMERCIAL
- Fastening Type :
- Push-Pull
- Number of Conductors :
- ONE
- Insulation Height :
- 0.238 6.05mm
- Dielectric Withstanding Voltage :
- 1050VAC V
- Factory Lead Time :
- 16 Weeks
- RoHS Status :
- Non-RoHS Compliant
- Plating Thickness :
- 1.27μm
- Mounting Type :
- Through Hole, Right Angle
- High Temperature Compatible :
- yes
- Housing Color :
- Black
- Number Of PCB Rows :
- 2
- Insulation Resistance :
- 5GOhm
- ELV :
- Non-Compliant
- Mating Contact Pitch :
- 0.1 inch
- Contact Material :
- Phosphor Bronze
- Contact Resistance :
- 12mOhm
- Approval Agency :
- CSA
- Rated Current (Signal) :
- 2A
- IEC Conformance :
- No
- UL Flammability Code :
- 94V-0
- Operating Temperature :
- -55°C~125°C
- PCB Contact Row Spacing :
- 7.874 mm
- Connector Type :
- Receptacle
- Contact Finish - Post :
- Tin-Lead
- Housing Material :
- Polyester
- Contact Current Rating :
- 2A
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Mixed Contacts :
- No
- Datasheets
- 2-535512-2
2 Rows Receptacle Solder Phosphor Bronze Through Hole, Right Angle Tube Gold Polyester, Glass Filled 30 Positions Female Socket
2-535512-2 Overview
Packaging is Receptacle.Through Hole, Right Angle is the mounting type.Packaging for the product is carried out via a Tube case.As a product of the AMPMODU Mod II Series, it can be found in this category.In this case, Through Hole mounts the part.The memory's operating supply voltage is 333V.The device is operating at -55°C~125°C Operating Temperature.
2-535512-2 Features
AMPMODU Mod II series
2-535512-2 Applications
There are a lot of TE Connectivity AMP Connectors
2-535512-2 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
