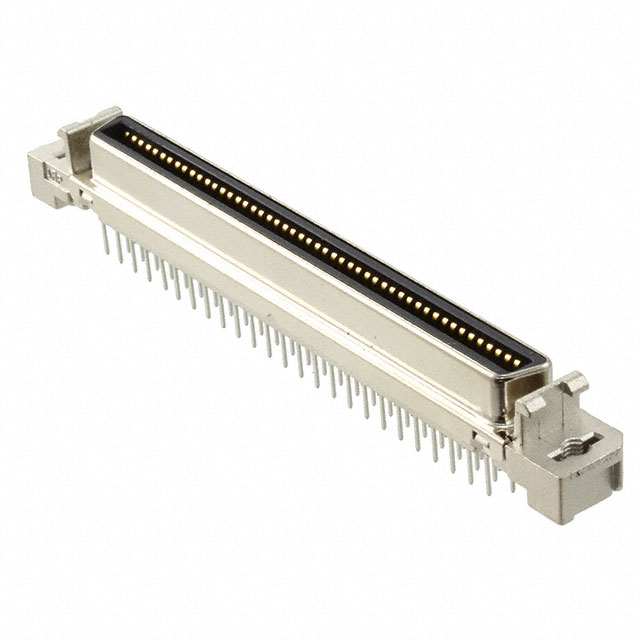

2-5175887-9

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Centronics Connectors

Shell Material :

Steel

Mixed Contacts :

No

Flammability Rating :

UL94 V-0

Orientation :

Vertical

Circuit Application :

Signal

Termination :

Solder

HTS Code :

8536.69.40.30

Filter Feature :

No

Lead Length :

3.1mm

Mount :

Through Hole

Contact Material :

Bronze

ECCN Code :

EAR99

Number of Positions :

100

Total Number of Contacts :

100

ELV :

Compliant

Current Rating :

500mA

Empty Shell :

No

Number of Conductors :

ONE

Pitch :

1.27mm

Connector Type :

Receptacle

Mounting Type :

Panel Mount, Through Hole

Color :

Black

Number of Rows :

2

Option :

GENERAL PURPOSE

PCB Mount Retention :

Without

Hole Diameter :

2.8 mm

Reference Standard :

UL

Contact Finish :

Gold

Lifecycle Status :

ACTIVE (Last Updated: 3 days ago)

Factory Lead Time :

19 Weeks

Mating Connector Lock :

With

RoHS Status :

RoHS Compliant

Contact Gender :

FEMALE

Panel Thickness :

2.01mm

PCB Thickness :

2.3622mm

Plating :

Nickel

Contact Plating :

Tin, Gold

Operating Temperature (Max) :

85°C

Operating Temperature (Min) :

-55°C

Preloaded :

yes

Depth :

9.1mm

Flange Feature :

Housing/Shell (M2.6)

UL Flammability Code :

94V-0

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Housing Material :

Thermoplastic

Sealable :

No

Connector Style :

Outer Shroud Contacts

Number of Ports :

1

Series :

CHAMP .050 II

Length :

48.15mm

Published :

2011

Contact Finish Thickness :

30.0μin 0.76μm
