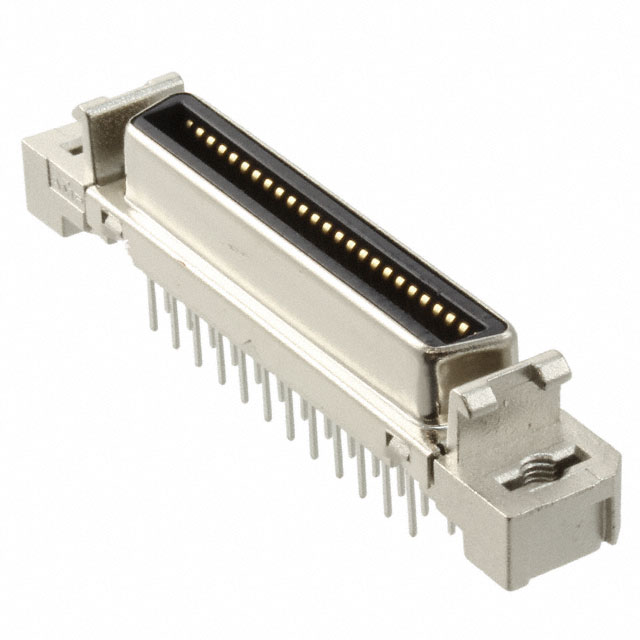

2-5175887-7

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Centronics Connectors

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Filter Feature :

No

ELV :

Compliant

Color :

Black

Number of Positions :

50

Contact Material :

Bronze

Sealable :

No

Plating :

Nickel

Current Rating :

500mA

PCB Mount Retention :

Without

RoHS Status :

RoHS Compliant

Mount :

Through Hole

Shell Material :

Steel

DIN Conformance :

No

Flammability Rating :

UL94 V-0

Depth :

9.1mm

MIL Conformance :

No

Option :

GENERAL PURPOSE

Lifecycle Status :

ACTIVE (Last Updated: 3 days ago)

Termination :

Solder

Factory Lead Time :

19 Weeks

Connector Style :

Outer Shroud Contacts

Number of Rows :

2

Contact Plating :

Tin, Gold

Contact Finish :

Gold

Panel Thickness :

2.01mm

Contact Finish Thickness :

30.0μin 0.76μm

UL Flammability Code :

94V-0

Pitch :

1.27mm

Circuit Application :

Signal

Published :

2011

Empty Shell :

No

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Mating Connector Lock :

With

Mixed Contacts :

No

Total Number of Contacts :

50

PCB Thickness :

2.3622mm

Orientation :

Vertical

Pbfree Code :

yes

IEC Conformance :

No

Length :

52.4mm

Preloaded :

yes

Mounting Type :

Panel Mount, Through Hole

Housing Material :

Thermoplastic

JESD-609 Code :

e3

Series :

CHAMP .050 II

Hole Diameter :

2.8 mm

Connector Type :

Receptacle

Number of Ports :

1

Contact Gender :

Male

Lead Length :

3.1mm

Flange Feature :

Housing/Shell (M2.6)
