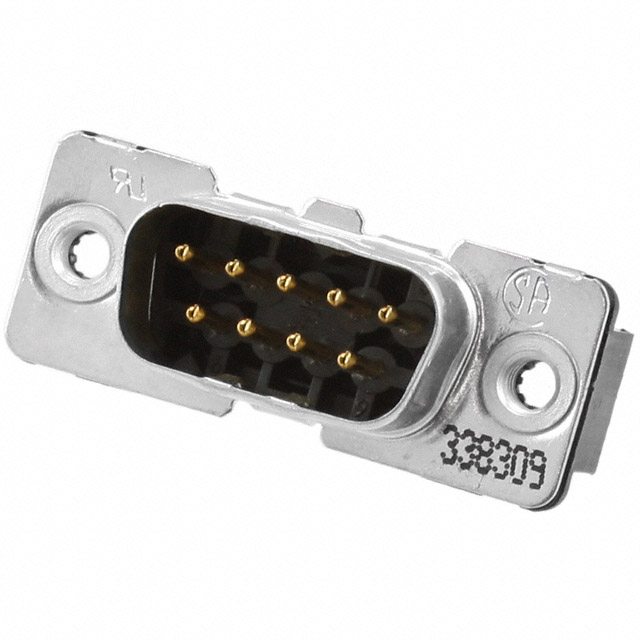

2-338309-2

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

D-Sub Connector Assemblies

Plating :

Tin

Contact Shape :

Round

Packaging :

Tray

MIL Conformance :

No

Mating Connector Lock :

With

Housing Material :

Glass

Preloaded :

yes

Filter Feature :

No

Number of Ports :

1

Number of Terminations :

9

Shell Material, Finish :

Steel, Tin Plated

Pitch :

2.74mm

RoHS Status :

RoHS Compliant

Feature :

Board Lock, Grounding Indents

Flange Feature :

Mating Side (M3)

Contact Finish :

Gold

Current Rating :

6A

Lead Length :

3.2mm

Connector Style :

D-Sub

Series :

AMPLIMITE HDP-20

Mount :

Through Hole

Hole Diameter :

5 mm

Published :

2005

Depth :

12.6mm

Orientation :

Vertical

Color :

Black

Total Number of Contacts :

9

Flammability Rating :

UL94 V-0

IEC Conformance :

No

Shell Size, Connector Layout :

1 DE E

Length :

30.9mm

Dielectric Material :

Polyester, Glass Filled

Pbfree Code :

yes

Width :

11.7mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Operating Temperature :

-55°C~105°C

Mounting Type :

Through Hole

Sealable :

No

Mixed Contacts :

No

Shell Finish :

Tin

Row Spacing :

2.8448 mm

Empty Shell :

No

JESD-609 Code :

e3

Material Flammability Rating :

UL94 V-0

Lifecycle Status :

ACTIVE (Last Updated: 5 days ago)

Shielding :

Unshielded

Shell Material :

Steel

Contact Material :

Phosphor Bronze

Termination :

Solder

Factory Lead Time :

20 Weeks

Contact Type :

Signal

Connector Type :

Plug, Male Pins

Option :

GENERAL PURPOSE

DIN Conformance :

No

PCB Thickness :

1.6mm

Number of Rows :

2

Gender :

Male
