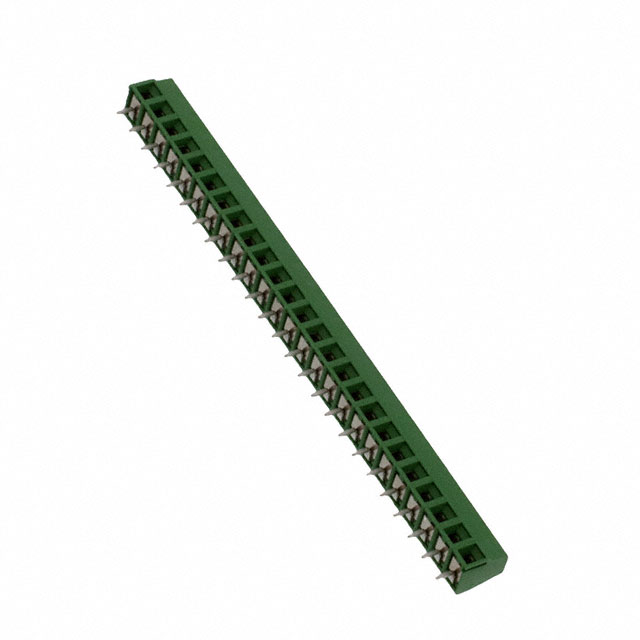

2-282837-5

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Wire to Board

RoHS Status :

RoHS Compliant

Lifecycle Status :

ACTIVE (Last Updated: 5 days ago)

Wire Gauge :

16-28 AWG

Housing Material :

Polyamide (PA66), Nylon 6/6

Lead Free :

Lead Free

Voltage - Rated :

300V

Number of Levels :

1

Contact Material :

Brass

Feature :

Interlocking (Side)

Wire Gauge (Max) :

28 AWG

Safety Approval :

UL

Max Current Rating :

13.5A

Length - Tail :

3.5mm

Number of Contacts :

25

Clamp Material - Plating :

Brass - Nickel Plated

Connector Type :

Receptacle

Number of Rows :

1

Screw Thread :

M3

Contact Plating :

Tin

Mounting Type :

Through Hole

Number of Decks :

1

Screw Material - Plating :

Brass - Nickel Plated

Radiation Hardening :

No

Published :

2007

ECCN Code :

EAR99

Pitch :

0.200 5.08mm

Packaging :

Bulk

Current Rating :

13.5A

Number of Ways :

25

Termination :

Screw

Terminal and Terminal Block Type :

MODULAR TERMINAL BLOCK

Factory Lead Time :

12 Weeks

HTS Code :

8536.69.40.40

ELV :

Compliant

Voltage - Rated AC :

250V

Mount :

Through Hole

Series :

Buchanan

Wire Gauge (Min) :

16 AWG

Orientation :

Straight

Mating Orientation :

Horizontal with Board

Torque - Screw :

0.68 Nm (6 Lb-In)

Contact Material - Plating :

Brass - Tin Plated

Wire Termination :

Screw - Rising Cage Clamp

Color :

Green

Flammability Rating :

UL94 V-0

Moisture Sensitivity Level (MSL) :

1 (Unlimited)
