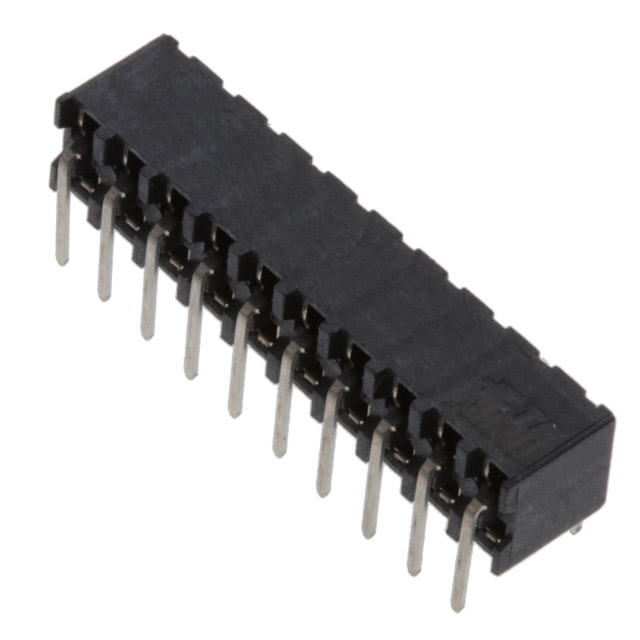

2-2314924-0
Or copy the link below:
- Mfr.Part #
- 2-2314924-0
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- 20P,2MM,B-B,REC,DRHZ,2.8,0.1AU,T
- Stock
- 325
- In Stock ：
- 325
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Receptacles, Female Sockets
- Series :
- AMPMODU
- Connector Type :
- Receptacle
- Material Flammability Rating :
- UL94 V-0
- Termination :
- Solder
- Number of Positions Loaded :
- All
- Contact Shape :
- Square
- Contact Length - Post :
- 0.110 2.79mm
- Contact Type :
- Female Socket
- Pitch - Mating :
- 0.079 2.00mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Insulation Height :
- 0.161 4.10mm
- Contact Material :
- Phosphor Bronze
- Contact Finish Thickness - Mating :
- 3.94μin 0.100μm
- Row Spacing - Mating :
- 0.079 (2.00mm)
- Voltage - Rated :
- 125VAC
- Packaging :
- Tape and Reel (TR)
- Fastening Type :
- Push-Pull
- Contact Finish - Mating :
- Gold
- Number of Positions :
- 20
- Style :
- Board to Board
- Mounting Type :
- Through Hole, Right Angle
- Insulation Material :
- Liquid Crystal Polymer (LCP)
- Factory Lead Time :
- 14 Weeks
- Operating Temperature :
- -40°C~125°C
- Insulation Color :
- Black
- Number of Rows :
- 2
- Current Rating (Amps) :
- 2A
- Contact Finish - Post :
- Tin
- Contact Finish Thickness - Post :
- 12.0μin 0.30μm
- RoHS Status :
- ROHS3 Compliant
- Datasheets
- 2-2314924-0
2 Rows Receptacle Solder Phosphor Bronze Through Hole, Right Angle Tape & Reel (TR) Gold Liquid Crystal Polymer (LCP) 20 Positions Female Socket
2-2314924-0 Overview
Currently, it is packaged in Receptacle.Mounting type Through Hole, Right Angle is assigned to the device.Packaging the product involves using a Tape & Reel (TR) case.Among the products in the AMPMODU Series, it is one of the most popular.-40°C~125°C Operating Temperature is used by the device.
2-2314924-0 Features
AMPMODU series
2-2314924-0 Applications
There are a lot of TE Connectivity AMP Connectors
2-2314924-0 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
