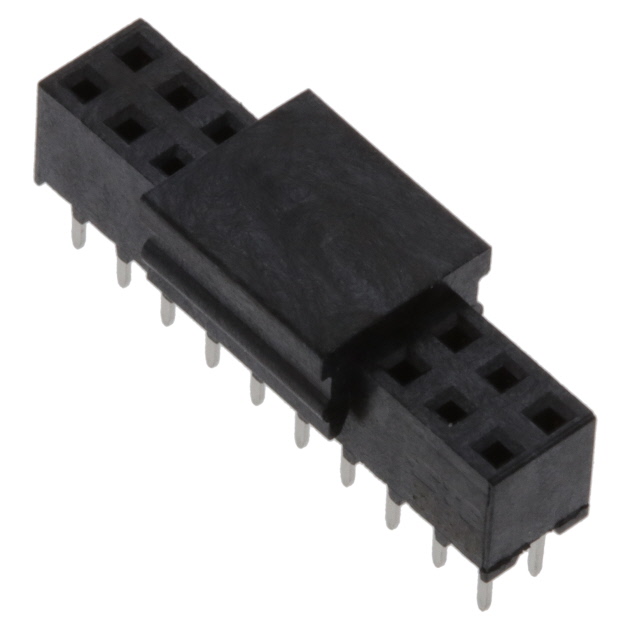

2-2314826-0
Or copy the link below:
- Mfr.Part #
- 2-2314826-0
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- 20P,2MM,B-B,REC,DRVT,2.7,0.76AU,
- Stock
- 1,291
- In Stock ：
- 1,291
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Receptacles, Female Sockets
- Connector Type :
- Receptacle
- Feature :
- Pick and Place
- Contact Material :
- Phosphor Bronze
- Number of Positions :
- 20
- Series :
- AMPMODU
- Operating Temperature :
- -40°C~125°C
- Number of Positions Loaded :
- All
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Fastening Type :
- Push-Pull
- Contact Finish - Post :
- Tin
- Number of Rows :
- 2
- Insulation Color :
- Black
- Current Rating (Amps) :
- 2A
- Contact Length - Post :
- 0.106 2.69mm
- Style :
- Board to Board
- Contact Type :
- Female Socket
- Packaging :
- Bulk
- Contact Finish - Mating :
- Gold
- Voltage - Rated :
- 125V
- Mounting Type :
- Through Hole
- Contact Finish Thickness - Post :
- 118.1μin 3.00μm
- Pitch - Mating :
- 0.079 2.00mm
- Termination :
- Solder
- Material Flammability Rating :
- UL94 V-0
- Insulation Material :
- Liquid Crystal Polymer (LCP)
- Row Spacing - Mating :
- 0.079 (2.00mm)
- Factory Lead Time :
- 13 Weeks
- Contact Shape :
- Square
- Insulation Height :
- 0.177 4.50mm
- Datasheets
- 2-2314826-0
2 Rows Receptacle Solder Phosphor Bronze Through Hole Bulk Gold Liquid Crystal Polymer (LCP) 20 Positions Female Socket
2-2314826-0 Overview
The product comes in a package of Receptacle.Through Hole is the type of mounting for the device.To package the product, a Bulk case is used.The product is a member of the AMPMODU Series.It is more powerful in many ways due to its Pick and Place feature.It operates at an operating temperature of -40°C~125°C.
2-2314826-0 Features
AMPMODU series
2-2314826-0 Applications
There are a lot of TE Connectivity AMP Connectors
2-2314826-0 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
