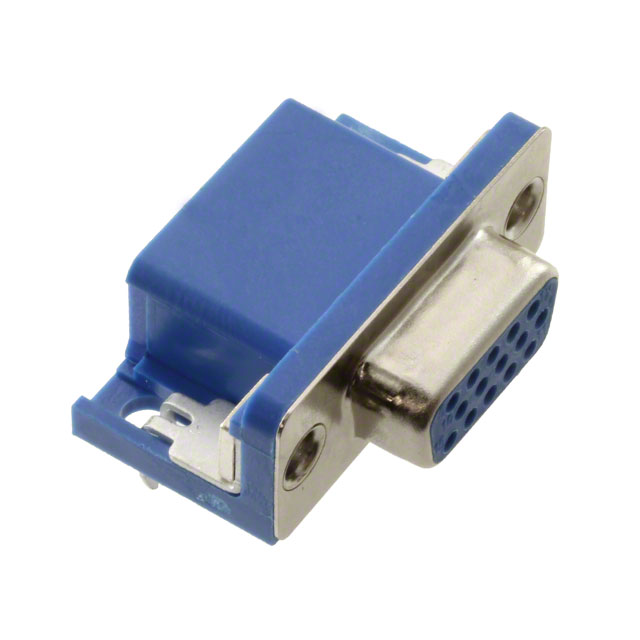

2-1734344-3

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

D-Sub Connector Assemblies

Contact Type :

Signal

RoHS Status :

RoHS Compliant

Approval Agency :

CSA, UL

Mounting Type :

Through Hole, Right Angle

Contact Material :

Phosphor Bronze

Published :

2008

Material Flammability Rating :

UL94 V-0

Series :

AMPLIMITE HD-22

MIL Conformance :

No

Radiation Hardening :

No

Connector Style :

D-Sub, High Density

Flammability Rating :

UL94 V-0

PCB Thickness :

1.57mm

Backset Spacing :

0.350 (8.89mm)

Feature :

Board Lock

Option :

GENERAL PURPOSE

Preloaded :

yes

Operating Temperature :

-55°C~130°C

Shell Size, Connector Layout :

1 DE E High Density

Flange Feature :

Housing/Shell (4-40)

Number of Rows :

3

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Factory Lead Time :

12 Weeks

Termination :

Solder

Empty Shell :

No

Dielectric Material :

Polyamide (PA9T), Nylon 9T

Total Number of Contacts :

15

Hole Diameter :

3.18 mm

Filter Feature :

No

Package / Case :

Metal

Number of Terminations :

15

IEC Conformance :

No

Depth :

22mm

Packaging :

Tray

PCB Mounting Orientation :

RIGHT ANGLE

Length :

30.8mm

JESD-609 Code :

e3

Current Rating :

2A

Gender :

FEMALE

Housing Material :

Thermoplastic

DIN Conformance :

No

UL Flammability Code :

94V-0

Number of Ports :

1

Pbfree Code :

yes

Mount :

Through Hole

Contact Finish Thickness :

30.0μin 0.76μm

Contact Shape :

Round

Lead Length :

3.2mm

Orientation :

RIGHT ANGLE

Color :

Blue

Contact Finish :

Gold

Mixed Contacts :

No

Connector Type :

Receptacle, Female Sockets

ECCN Code :

EAR99

Shell Material, Finish :

Steel, Nickel Plated

Voltage - Rated :

125V

Plating :

Nickel

Pitch :

2.29mm
