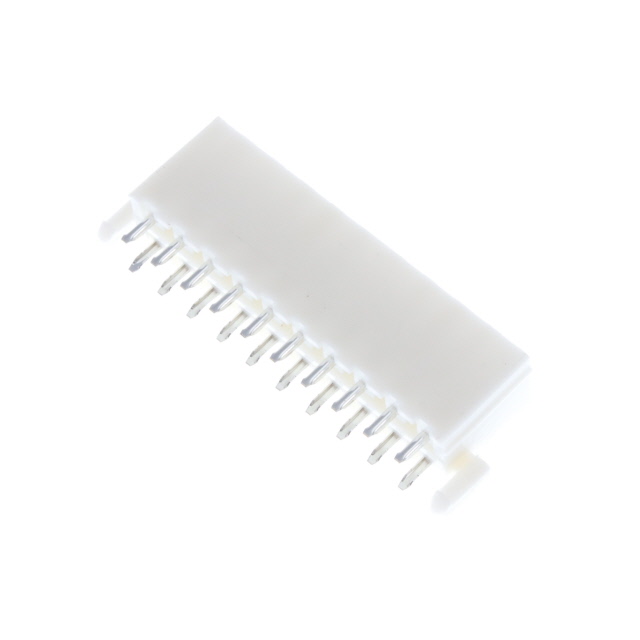

2-1586040-0
Or copy the link below:
- Mfr.Part #
- 2-1586040-0
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 20POS 4.2MM
- Stock
- 1,255
- In Stock ：
- 1,255
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- IEC Conformance :
- No
- Durability :
- 50 Cycles
- Voltage - Rated :
- 600VAC
- Number Of PCB Rows :
- 2
- Filter Feature :
- No
- Contact Material :
- Brass Alloy
- MIL Conformance :
- No
- Operating Temperature :
- -40°C~105°C
- Rated Current (Signal) :
- 9A
- Contact Finish Thickness - Post :
- 80.0μin 2.03μm
- Circuit Application :
- Power
- Sealable :
- No
- Insulation Height :
- 0.504 12.80mm
- Contact Shape :
- Square
- Contact Current Rating :
- 9A
- Pitch - Mating :
- 0.165 4.20mm
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- UL Flammability Code :
- 94V-0
- Row Spacing - Mating :
- 0.165 (4.20mm)
- Plating Thickness :
- 80μm
- Number of Rows :
- 2
- Connector Type :
- Header
- Color :
- Beige
- Polarization Key :
- POLARIZED HOUSING
- DIN Conformance :
- No
- Insulation Color :
- Natural
- Feature :
- Board Lock
- Insulation Material :
- Polyamide (PA), Nylon
- HTS Code :
- 8536.69.40.40
- Housing Color :
- White, Natural
- Mixed Contacts :
- No
- ECCN Code :
- EAR99
- Applications :
- General Purpose, Industrial, Lighting
- Termination :
- Solder
- Number of Positions Loaded :
- All
- Shrouding :
- Shrouded - 4 Wall
- RoHS Status :
- RoHS Compliant
- Contact Finish - Mating :
- Tin
- Flammability Rating :
- UL94 V-0
- Contact Type :
- Male Pin
- Contact Finish Thickness - Mating :
- 80.0μin 2.03μm
- Lead Free :
- Lead Free
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Contacts :
- 20
- Approval Agency :
- CSA
- ELV :
- Compliant
- PCB Thickness :
- 63μm
- Fastening Type :
- Locking Ramp
- Current Rating :
- 9A
- Operating Supply Voltage :
- 600V
- Withdrawl Force-Min :
- .5004 N
- Mount :
- Through Hole
- Insulation Diameter :
- 3.0988 mm
- Height :
- 12.8mm
- Body Breadth :
- 0.384 inch
- Reliability :
- COMMERCIAL
- Series :
- VAL-U-LOK
- Width :
- 9.8044mm
- Material Flammability Rating :
- UL94 V-0
- Factory Lead Time :
- 16 Weeks
- Packaging :
- Tray
- Number of Ports :
- 1
- Length :
- 43.2mm
- Number of Conductors :
- ONE
- Body Depth :
- 0.504 inch
- Orientation :
- Vertical
- Mounting Type :
- Through Hole
- Contact Length - Post :
- 0.138 3.50mm
- Style :
- Board to Cable/Wire
- PCB Contact Pattern :
- RECTANGULAR
- Housing Material :
- Nylon
- Contact Retention :
- Without
- Published :
- 2008
- Max Voltage Rating (AC) :
- 600V
- Datasheets
- 2-1586040-0
VAL-U-LOK Series 2-Row Header Solder Brass Alloy Tray Through Hole Tin Polyamide (PA), Nylon Board to Cable/Wire 0.504 12.80mm Height
2-1586040-0 Overview
Packaging is Header.Through Hole is the mounting type.Packaging for the product is carried out via a Tray case.As a product of the VAL-U-LOK Series, it can be found in this category.A variety of tasks can be managed via its 1 ports.A possible application of the device would be General Purpose, Industrial, Lighting.With its Board Lock feature, it is more powerful in many ways.In this case, Through Hole mounts the part.The memory's operating supply voltage is 600V.The device is operating at -40°C~105°C Operating Temperature.
2-1586040-0 Features
VAL-U-LOK series
2-1586040-0 Applications
There are a lot of TE Connectivity AMP Connectors
2-1586040-0 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
