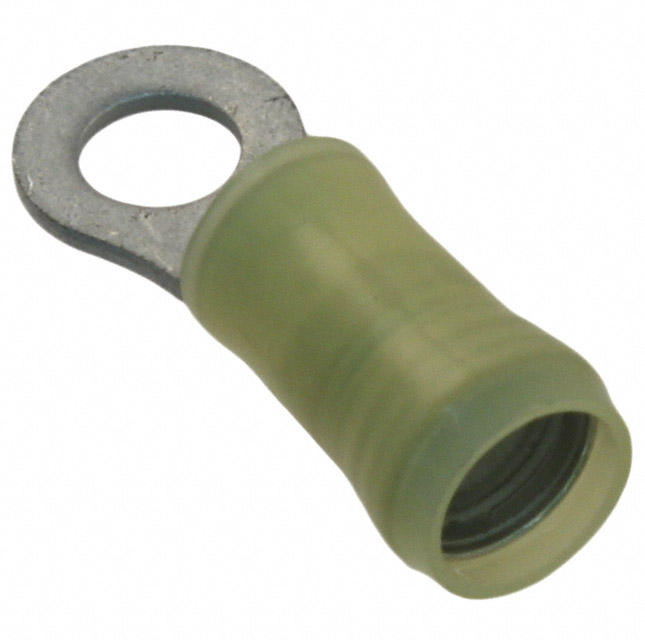

2-130171-1
Or copy the link below:
- Mfr.Part #
- 2-130171-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RING CIRC 10-12AWG M5 CRIMP
- Stock
- 28,573
- In Stock ：
- 28,573
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Ring Connectors
- Diameter - Inside :
- 6.42 mm
- Insulation :
- Insulated
- Contact Material :
- Copper
- Feature :
- Serrated Termination
- Wire Cross Section :
- 6 mm2
- Wire Gauge (Max) :
- 12 AWG
- Insulated Wire Support :
- yes
- Mount :
- Free Hanging
- Voltage - Rated AC :
- 300V
- ECCN Code :
- EAR99
- Length - Overall :
- 1.090 27.69mm
- Lead Free :
- Not Applicable
- Plating Thickness :
- 2.54μm
- RoHS Status :
- RoHS Compliant
- Published :
- 2010
- Number of Holes :
- 1
- Terminal and Terminal Block Type :
- RING TERMINAL
- Heavy Duty :
- No
- Depth :
- 9.52mm
- Wire Gauge :
- 10-12 AWG
- Material Thickness :
- 990.6μm
- Packaging :
- Tape and Reel (TR)
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Pbfree Code :
- yes
- Material - Insulation :
- Polyamide (PA), Nylon
- ELV :
- Compliant
- Mounting Type :
- Free Hanging (In-Line)
- HTS Code :
- 8536.90.40.00
- Stud Diameter :
- 5.2578 mm
- Contact Plating :
- Tin
- Series :
- PIDG
- Wire Gauge (Min) :
- 10 AWG
- Width - Outer Edges :
- 0.375 9.53mm
- Color :
- Yellow
- Stud/Tab Size :
- M5 Stud
- Terminal Type :
- Circular
- Stud Size :
- M5
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Length :
- 27.686mm
- Termination :
- Crimp
- Thickness :
- 0.039 0.99mm
- Tongue Thickness :
- 990μm
- Wire/Cable Diameter :
- 6.2992 mm
- Insulation Diameter :
- 0.150 ~ 0.250 (3.81mm ~ 6.35mm)
- Factory Lead Time :
- 8 Weeks
- Datasheets
- 2-130171-1
