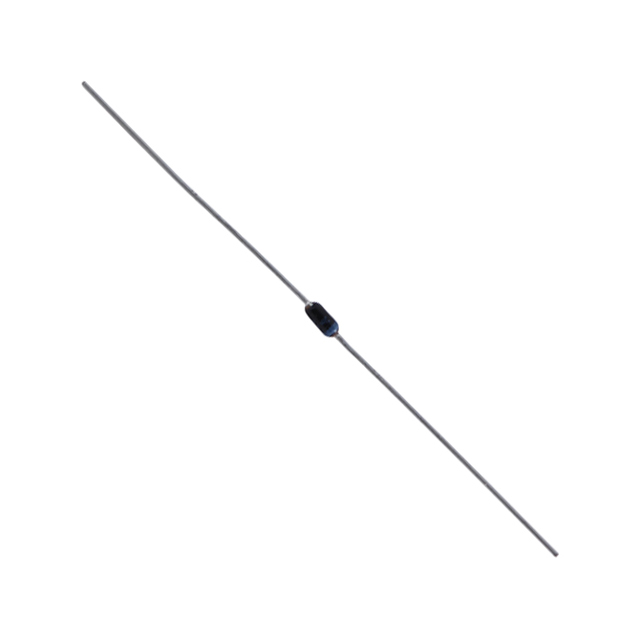

1N5711
Or copy the link below:
- Mfr.Part #
- 1N5711
- Manufacturer
- NTE Electronics, Inc.
- Package / Case
- DO-204AH, DO-35, Axial
- Datasheet
- Download
- Description
- D-SCHOTTKY 70V
- Stock
- 1,612
- In Stock ：
- 1,612
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- NTE Electronics, Inc.
- Product Category :
- Diodes - RF
- Output Current :
- 15mA
- Lead Free :
- Lead Free
- Mount :
- Through Hole
- Length :
- 4.5mm
- Max Repetitive Reverse Voltage (Vrrm) :
- 70V
- ECCN Code :
- EAR99
- Number of Elements :
- 1
- Capacitance :
- 2pF
- Power Dissipation :
- 430mW
- Peak Reverse Current :
- 200nA
- Reverse Voltage (DC) :
- 70V
- Max Reverse Leakage Current :
- 200nA
- Pin Count :
- 2
- Contact Plating :
- Tin
- Factory Lead Time :
- 15 Weeks
- Radiation Hardening :
- No
- Max Current Rating :
- 15mA
- Forward Current :
- 15mA
- Packaging :
- Tape and Reel (TR)
- Additional Feature :
- FAST SWITCHING
- Width :
- 2mm
- JESD-609 Code :
- e3
- REACH SVHC :
- No SVHC
- Diameter :
- 2mm
- Package / Case :
- DO-204AH, DO-35, Axial
- Diode Element Material :
- SILICON
- RoHS Status :
- ROHS3 Compliant
- Current Rating :
- 15mA
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Case Connection :
- Isolated
- Operating Temperature :
- -65°C~200°C TJ
- Reverse Recovery Time :
- 100 ps
- Max Junction Temperature (Tj) :
- 200°C
- Polarity :
- Standard
- Outside Diameter :
- 1.93 mm
- Terminal Form :
- Wire
- Number of Terminations :
- 2
- Voltage - Rated DC :
- 70V
- Reverse Voltage :
- 70V
- Height :
- 2mm
- Termination :
- Axial
- Number of Pins :
- 2
- Element Configuration :
- Single
- Weight :
- 4.535924g
- HTS Code :
- 8541.10.00.70
- Capacitance @ Vr, F :
- 2pF @ 0V 1MHz
- Base Part Number :
- 1N57
- Breakdown Voltage :
- 70V
- Forward Voltage :
- 1V
- Diode Type :
- Schottky - Single
- Datasheets
- 1N5711
Schottky - Single 2pF @ 0V 1MHz -65°C~200°C TJ 2 Terminations SILICON Tape & Reel (TR) DO-204AH, DO-35, Axial
1N5711 Overview
Maintaining the forward voltage of a system above 1V is recommended.We are referring to 2pF capacitance in this case.A rating of 15mA is currently assigned to this part.
1N5711 Features
2pF capacitance
1N5711 Applications
There are a lot of STMicroelectronics
1N5711 applications of RF diodes.
- Diode ring mixer
- RF detector
- RF voltage doubler
- Wearables
- Smart metering
- Set top boxes
- RF attenuators and switches
- Low-loss, high-power limiters
- Receiver protectors
- UHF mixer
