1985001
Or copy the link below:
- Mfr.Part #
- 1985001
- Manufacturer
- Phoenix Contact
- Package / Case
- Datasheet
- Download
- Description

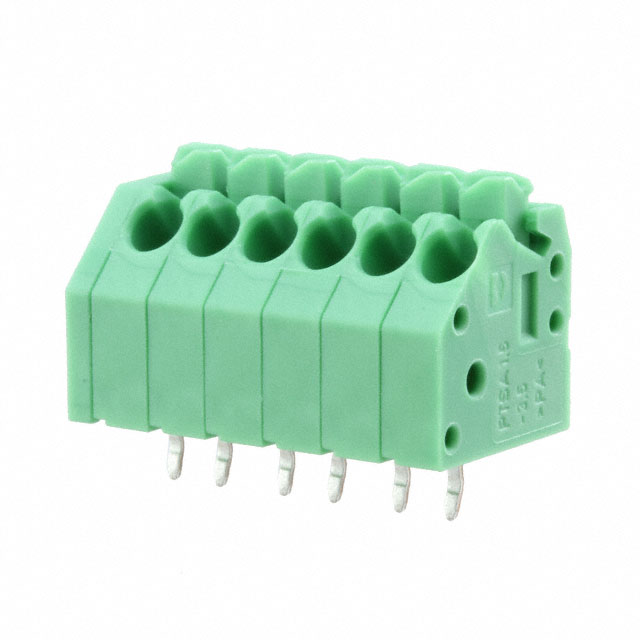

- TERM BLOCK 6POS 45DEG 3.5MM PCB
- Stock
- 1,707
- In Stock ：
- 1,707
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Phoenix Contact
- Product Category :
- Wire to Board
- Terminal and Terminal Block Type :
- BARRIER STRIP TERMINAL BLOCK
- Current Rating :
- 2A
- Positions Per Level :
- 6
- RoHS Status :
- RoHS Compliant
- Number of Positions :
- 6
- Termination :
- Screwless
- ECCN Code :
- EAR99
- Pbfree Code :
- yes
- Wire Gauge :
- 16-24 AWG
- Approval Agency :
- UL, VDE
- Voltage - Rated :
- 200V
- Number of Rows :
- 1
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Wire Termination :
- Screwless - Spring Cage, Tension Clamp
- Packaging :
- Bulk
- Published :
- 2005
- Factory Lead Time :
- 4 Weeks
- Flammability Rating :
- UL94 V-0
- Housing Material :
- Polyamide (PA), Nylon
- Voltage :
- 300V
- Additional Feature :
- PA, 94V-0
- Wire Gauge (Max) :
- 24 AWG
- Stripping Length :
- 8mm
- Number of Levels :
- 1
- Material :
- Nylon
- Mating Orientation :
- 45° (135°) Angle with Board
- Fastening Method :
- SPRING LOADED
- Number of Decks :
- 1
- Wire/Cable Gauge :
- 16 AWG
- Height :
- 13.1mm
- Number of Ways :
- 6
- Mount :
- Through Hole
- Weight :
- 2.860013g
- Pitch :
- 0.138 3.50mm
- Series :
- COMBICON PTSA
- Lead Free :
- Lead Free
- Color :
- Green
- Wire Gauge (Min) :
- 16 AWG
- Mounting Type :
- Through Hole
- Length :
- 12mm
- Safety Approval :
- UL
- Datasheets
- 1985001
1985001 Documents
0.138 3.50mm Green Bulk Polyamide (PA), Nylon Through Hole 45° (135°) Angle with Board Screwless - Spring Cage, Tension Clamp 1 Levels 16-24 AWG COMBICON PTSA
1985001 Overview
Through Hole is the type of mounting for the device.To package the product, a Bulk case is used.The product is a member of the COMBICON PTSA Series.Among other features are PA, 94V-0, to name only a few.It is mounted by Through Hole.
1985001 Features
COMBICON PTSA series
1985001 Applications
There are a lot of Phoenix Contact
1985001 Terminal Blocks applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
