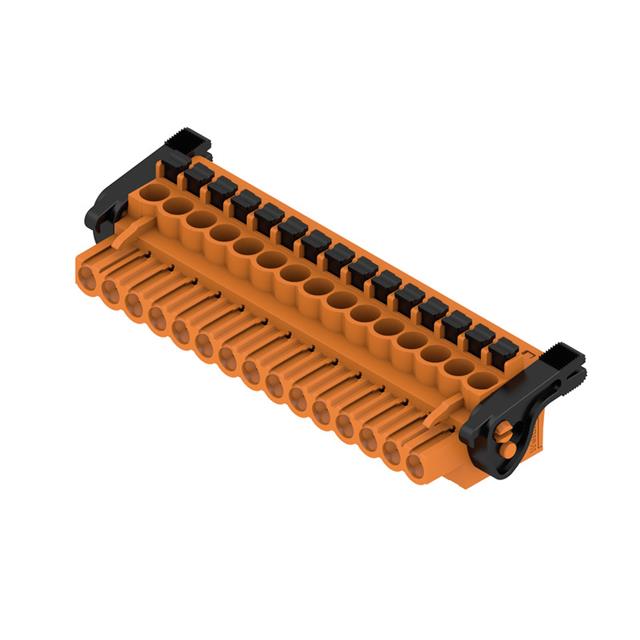

1981000000
Or copy the link below:
- Mfr.Part #
- 1981000000
- Manufacturer
- Weidmuller
- Package / Case
- Datasheet
- Download
- Description
- TERM BLOCK PLUG 15POS 90DEG 5MM
- Stock
- 21,624
- In Stock ：
- 21,624
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Weidmuller
- Product Category :
- Headers, Plugs and Sockets
- Current :
- 10A
- Feature :
- Ejector Latches, Retention Latches (Wire Side)
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Current - UL :
- 18.5A
- Current Rating :
- 6A
- Contact Mating Finish :
- Tin
- Pitch :
- 0.197 5.00mm
- Material Flammability Rating :
- UL94 V-0
- Ingress Protection :
- IP20
- Termination Style :
- Screwless - Leg Spring, Push-In Spring
- Current - IEC :
- 24A
- Voltage - IEC :
- 400V
- Flammability Rating :
- UL94 V-0
- Voltage - Rated :
- 300V
- Factory Lead Time :
- 12 Weeks
- Housing Material :
- Polybutylene Terephthalate (PBT)
- Stripping Length :
- 10mm
- Number of Positions Per Level :
- 15
- Wire Gauge or Range - AWG :
- 12-26 AWG
- Mounting Type :
- Free Hanging (In-Line)
- Packaging :
- Box
- RoHS Status :
- RoHS Compliant
- Approval Agency :
- CSA, cURus
- Mount :
- Free Hanging
- Insulation Height :
- 0.819 20.80mm
- Contact Material :
- COPPER ALLOY
- Number of Levels :
- 1
- Wire Gauge (Max) :
- 26 AWG
- Plug Wire Entry :
- 90°
- Operating Temperature :
- -50°C~100°C
- Termination :
- Screwless
- Published :
- 2009
- Series :
- Omnimate BL
- Type :
- Plug, Female Sockets
- Color :
- Orange
- Wire Gauge (Min) :
- 12 AWG
- Wire Gauge or Range - mm² :
- 0.2-2.5mm2
- Voltage :
- 300V
- Datasheets
- 1981000000
Box 0.197 5.00mm Orange 1 Levels Free Hanging (In-Line) Plug, Female Sockets Omnimate BL Polybutylene Terephthalate (PBT) Tin Copper Alloy
1981000000 Overview
This device has a Free Hanging (In-Line) mounting type.An orange Box case is used to package the product.Specifically, it is one of the products in the Omnimate BL Series.Several benefits come from the Ejector Latches, Retention Latches (Wire Side) feature.There is a mounting hole at Free Hanging.Devices operate at -50°C~100°C operating temperatures.There are many benefits that this part shares with other Plug, Female Sockets products as well.
1981000000 Features
Omnimate BL series
1981000000 Applications
There are a lot of Weidmüller
1981000000 Terminal Blocks applications.
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
