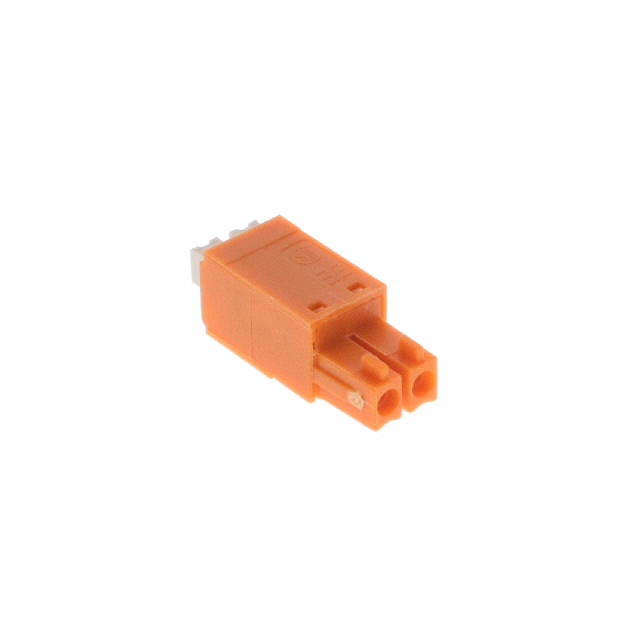

1969090000
Or copy the link below:
- Mfr.Part #
- 1969090000
- Manufacturer
- Weidmuller
- Package / Case
- Datasheet
- Download
- Description
- TERM BLOCK PLUG 2POS STR 3.81MM
- Stock
- 74
- In Stock ：
- 74
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Weidmuller
- Product Category :
- Headers, Plugs and Sockets
- Contact Mating Finish :
- Tin
- Number of Levels :
- 1
- Current - UL :
- 10A
- Current Rating :
- 17.5A
- Series :
- Omnimate BC
- Ingress Protection :
- IP20
- Mounting Type :
- Free Hanging (In-Line)
- Pitch :
- 0.150 3.81mm
- Type :
- Plug, Female Sockets
- Plug Wire Entry :
- 180°
- Voltage - Rated :
- 300V
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Stripping Length :
- 8mm
- Flammability Rating :
- UL94 V-0
- Feature :
- Push Button Actuated
- Contact Material :
- COPPER ALLOY
- Factory Lead Time :
- 14 Weeks
- Termination Style :
- Screwless - Leg Spring, Push-In Spring
- Number of Decks :
- 1
- Number of Ways :
- 2
- Packaging :
- Bulk
- Number of Rows :
- 1
- Material Flammability Rating :
- UL94 V-0
- ECCN Code :
- EAR99
- Number of Positions :
- 2
- HTS Code :
- 8536.69.40.40
- Voltage - IEC :
- 320V
- RoHS Status :
- RoHS Compliant
- Operating Temperature :
- -50°C~120°C
- Wire Strip Length :
- 9mm
- Voltage - UL :
- 300V
- Approval Agency :
- CSA, cURus
- Wire Gauge or Range - AWG :
- 16-26 AWG
- Insulation Material :
- Nylon
- Wire Gauge or Range - mm² :
- 0.14-1.5mm2
- Insulation Height :
- 0.311 7.90mm
- Color :
- Orange
- Housing Material :
- Polyamide (PA66), Nylon 6/6, Glass Filled
- Datasheets
- 1969090000
Bulk 0.150 3.81mm Orange 1 Levels Free Hanging (In-Line) Plug, Female Sockets Omnimate BC Polyamide (PA66), Nylon 6/6, Glass Filled Tin Copper Alloy
1969090000 Overview
The mounting type of the device is Free Hanging (In-Line).A Bulk case is used to package the product.A product of the Omnimate BC Series, it belongs to the range of products of that series.A number of features make the Push Button Actuated feature more powerful.-50°C~120°C Operating Temperature is the default operating temperature for the device.As with other Plug, Female Sockets products, this part also offers a wide range of benefits.
1969090000 Features
Omnimate BC series
1969090000 Applications
There are a lot of Weidmüller
1969090000 Terminal Blocks applications.
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
- Refrigeration control
