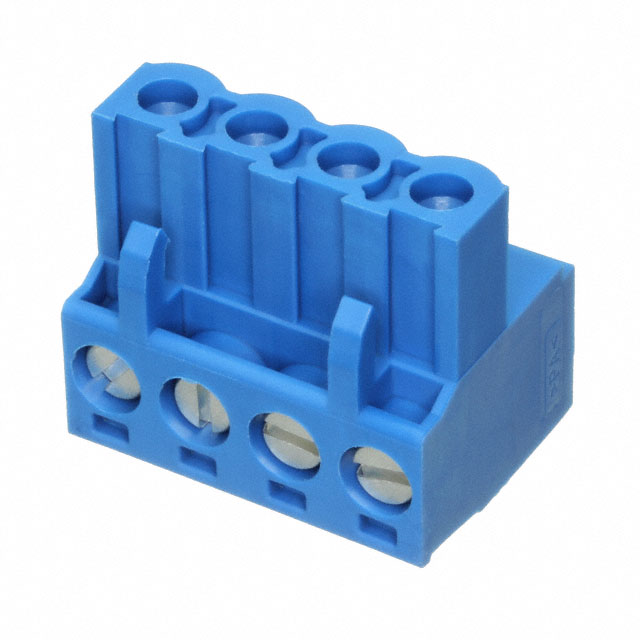

1878040

Manufacturer :

Phoenix Contact

Product Category :

Headers, Plugs and Sockets

Voltage :

300V

Type :

Plug, Female Sockets

Connector Type :

Screw, Socket

Width :

20mm

Voltage - Rated :

250V

Pitch :

0.197 5.00mm

Current Rating :

12A

Screw Size :

M3

Contact Plating :

Tin

Flammability Rating :

UL94 V-2

Mounting Type :

Free Hanging (In-Line)

Weight :

6.62999g

Housing Material :

Polyamide (PA), Nylon

Plug Wire Entry :

180°

Material Flammability Rating :

UL94 V-2

Wire Gauge (Max) :

30 AWG

Packaging :

Bulk

Wire Gauge (Min) :

12 AWG

Wire Strip Length :

7mm

Torque - Screw :

0.5-0.6 Nm (4.4-5.3 Lb-In)

ECCN Code :

EAR99

Length :

15mm

Wire Gauge or Range - AWG :

12-30 AWG

Feature :

Retention Latches (Non-Wire Side)

Current - IEC :

12A

Insulation Height :

0.591 15.00mm

Number of Levels :

1

Number of Ways :

4

Height :

18.2mm

Voltage - IEC :

630V

Termination :

Screw

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Termination Style :

Screw - Rising Cage Clamp

Number of Decks :

1

Mount :

Free Hanging

Factory Lead Time :

7 Weeks

Wire Gauge or Range - mm² :

0.2-2.5mm2

Series :

COMBICON MSTBT

Number of Positions :

4

RoHS Status :

RoHS Compliant

Current :

15A

Color :

Blue

Pbfree Code :

yes

Published :

2011

Number of Rows :

1
