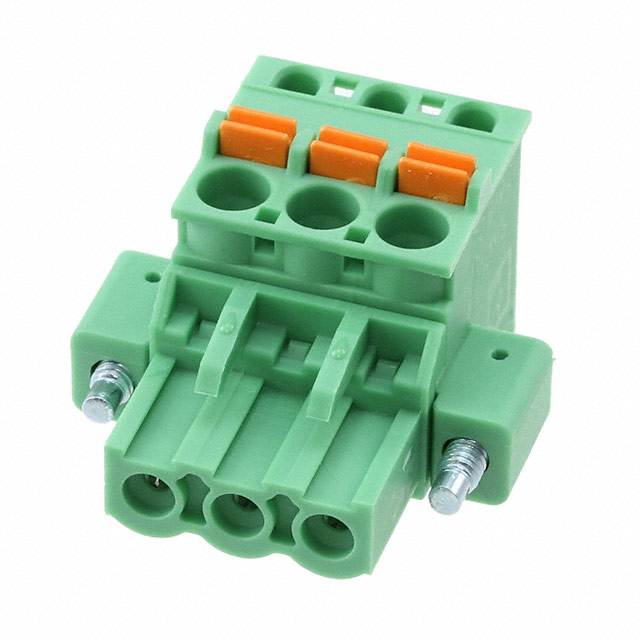

1874112

Manufacturer :

Phoenix Contact

Product Category :

Headers, Plugs and Sockets

Housing Material :

Polyamide (PA), Nylon

Current :

10A

Material Flammability Rating :

UL94 V-0

Wire Gauge or Range - AWG :

12-26 AWG

Depth :

16.8mm

Wire Cross Section :

2.5 mm2

Gender :

FEMALE

Type :

Plug, Female Sockets

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Ways :

3

Published :

2011

Wire Strip Length :

10mm

Height :

25.34mm

Width :

26.6mm

Wire Gauge (Min) :

24 AWG

Factory Lead Time :

4 Weeks

Length :

25.34mm

Color :

Green

Safety Approval :

UL

Connector Type :

Socket

Voltage - Rated :

250V

Orientation :

RIGHT ANGLE

ECCN Code :

EAR99

Mounting Type :

Free Hanging (In-Line)

Max Current Rating :

12A

Wire Gauge (Max) :

12 AWG

Pitch :

0.200 5.08mm

Number of Rows :

1

Material :

Polyamide

Number of Decks :

1

RoHS Status :

RoHS Compliant

Plug Wire Entry :

90°

Wire Gauge or Range - mm² :

0.2-2.5mm2

Termination :

Screwless

Termination Style :

Screwless - Leg Spring, Push-In Spring

Mount :

Cable, Free Hanging, Panel

Number of Contacts :

3

Weight :

141.747616g

Contact Plating :

Tin

Feature :

Mating Flange, Retention Latches (Non-Wire Side)

Series :

COMBICON FKCVR

Pbfree Code :

yes

Insulation Height :

0.661 16.80mm

Packaging :

Bulk

Flammability Rating :

UL94 V-0

Number of Levels :

1

Current Rating :

12A

Voltage :

300V

Fastening Method :

SPRING LOADED

Number of Positions :

3

Voltage - IEC :

630V

Additional Feature :

PA, UL 94V-0
