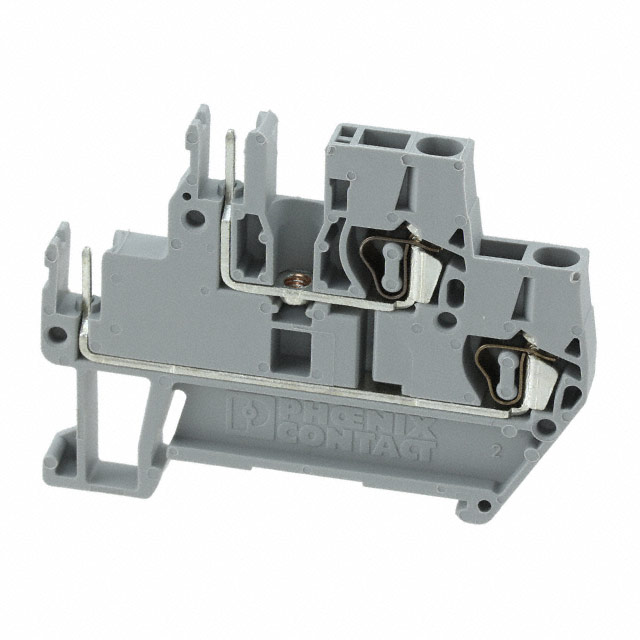

1873016

Manufacturer :

Phoenix Contact

Product Category :

Specialized

Mount :

DIN Rail

Terminal Width :

5.1mm

Current :

12A

Type :

Plug Connection

Length :

2.323 59.00mm

RoHS Status :

RoHS Compliant

Fastening Method :

SPRING LOADED

Published :

2011

Color :

Grey

Current Rating :

12A

Termination Style :

Plug Receptacles, Push In, Spring

ECCN Code :

EAR99

Wire Gauge or Range - mm² :

0.2-2.5mm2

Number of Decks :

2

Wire Gauge (Max) :

26 AWG

Material - Insulation :

Polyamide (PA), Nylon

Factory Lead Time :

5 Weeks

Series :

CLIPLINE ZFKK

Number of Levels :

2

Height :

48.1076mm

Wire Gauge or Range - AWG :

14-26 AWG

Mounting Type :

DIN Rail

Safety Approval :

UL

Number of Positions :

4

Termination :

PLUG

Flammability Rating :

UL94 V-0

Housing Color :

Gray

Stripping Length :

10mm

Wire Gauge (Min) :

14 AWG

Material Flammability Rating :

UL94 V-0

Voltage :

300V

Width :

5.08mm

Number of Ways :

4

Moisture Sensitivity Level (MSL) :

Not Applicable

Voltage - Rated :

250V

Pitch :

5.08mm

Voltage - IEC :

250V

Number of Rows :

2

Pbfree Code :

yes
