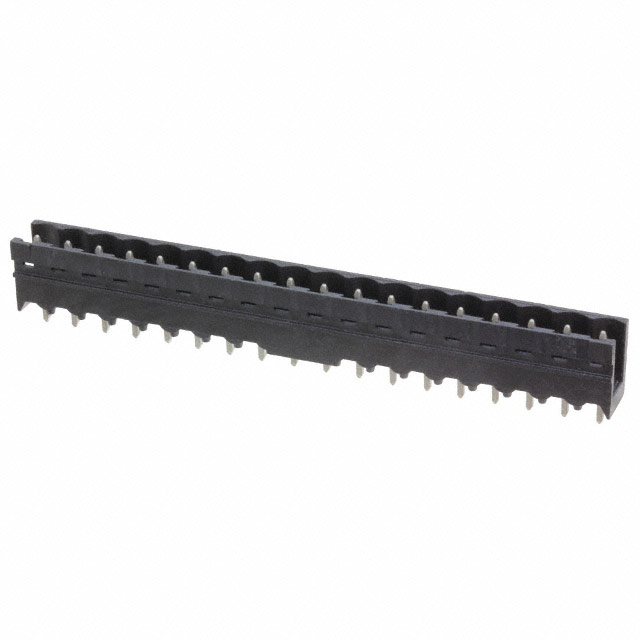

1838140000
Or copy the link below:
- Mfr.Part #
- 1838140000
- Manufacturer
- Weidmuller
- Package / Case
- Datasheet
- Download
- Description
- TERM BLOCK HDR 18POS VERT 5.08MM
- Stock
- 49
- In Stock ：
- 49
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Weidmuller
- Product Category :
- Headers, Plugs and Sockets
- Radiation Hardening :
- No
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Current Rating :
- 15A
- Housing Material :
- Liquid Crystal Polymer (LCP), Glass Filled
- Contact Material :
- COPPER ALLOY
- Approval Agency :
- CSA, UR
- Flammability Rating :
- UL94 V-0
- Material Flammability Rating :
- UL94 V-0
- Number of Poles :
- 18
- Insulation Height :
- 0.472 12.00mm
- Voltage - UL :
- 300V
- Mounting Type :
- Through Hole
- Type :
- Header, Male Pins, Shrouded (2 Side)
- Factory Lead Time :
- 12 Weeks
- Contact Mating Finish :
- Tin
- Current - UL :
- 18.5A
- Hole Diameter :
- 1.5 mm
- Series :
- Omnimate SL
- Voltage - Rated :
- 300V
- Color :
- Black
- Contact Tail Length :
- 0.126 3.20mm
- Filter Feature :
- No
- Mixed Contacts :
- No
- JESD-609 Code :
- e3
- Mount :
- Through Hole
- Voltage - IEC :
- 400V
- IEC Conformance :
- No
- Termination Style :
- Solder
- Option :
- GENERAL PURPOSE
- Operating Temperature :
- -50°C~100°C
- Packaging :
- Bulk
- MIL Conformance :
- No
- Total Number of Contacts :
- 18
- Header Orientation :
- Vertical
- Published :
- 2008
- Gender :
- Male
- Number of Rows :
- 1
- Pitch :
- 0.200 5.08mm
- Number of Levels :
- 1
- UL Flammability Code :
- 94V-0
- DIN Conformance :
- No
- RoHS Status :
- RoHS Compliant
- Current - IEC :
- 27.5A
- Datasheets
- 1838140000
Bulk 0.200 5.08mm Black 1 Levels Through Hole Header, Male Pins, Shrouded (2 Side) Omnimate SL Liquid Crystal Polymer (LCP), Glass Filled Tin Copper Alloy
1838140000 Overview
Through Hole is the mounting type.Packaging for the product is carried out via a Bulk case.As a product of the Omnimate SL Series, it can be found in this category.In this case, Through Hole mounts the part.The device is operating at -50°C~100°C Operating Temperature.There are a lot of similarities between this part and other Header, Male Pins, Shrouded (2 Side) products.
1838140000 Features
Omnimate SL series
1838140000 Applications
There are a lot of Weidmüller
1838140000 Terminal Blocks applications.
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
