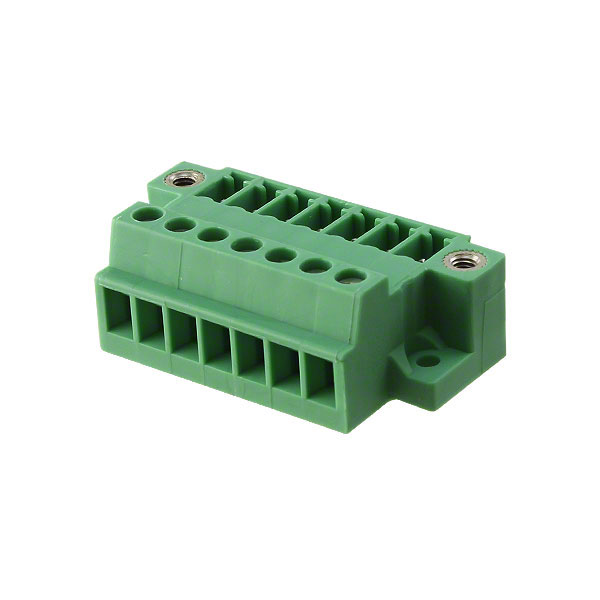

1833072

Manufacturer :

Phoenix Contact

Product Category :

Headers, Plugs and Sockets

Wire Gauge or Range - AWG :

14-30 AWG

Mount :

Panel

Pbfree Code :

yes

Published :

2011

Voltage :

300V

Packaging :

Bulk

Contact Mating Finish :

Tin

Voltage - IEC :

320V

Series :

COMBICON MCVU

Orientation :

Straight

Color :

Green

Number of Ways :

7

Insulation Height :

0.492 12.50mm

Termination :

Screw

Torque - Screw :

0.22-0.25 Nm (1.9-2.2 Lb-In)

RoHS Status :

RoHS Compliant

Current Rating :

8A

Wire Strip Length :

7mm

Max Current Rating :

8A

Number of Levels :

1

Material Flammability Rating :

UL94 V-0

Mounting Type :

Board Mount

Wire Gauge (Min) :

14 AWG

Number of Contacts :

7

Weight :

203.999993g

Additional Feature :

PA, 94V-0

Housing Material :

Polyamide (PA), Nylon

Wire Gauge or Range - mm² :

0.14-1.5mm2

Reach Compliance Code :

Unknown

HTS Code :

8536.69.40.40

Feature :

Mating and Mounting Flange

Flammability Rating :

UL94 V-0

Type :

Receptacle, Male Pins

Voltage - Rated :

160V

Termination Style :

Screw - Rising Cage Clamp

Number of Decks :

1

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Safety Approval :

UL

Current :

8A

Number of Rows :

1

Pitch :

0.150 3.81mm

ECCN Code :

EAR99

Factory Lead Time :

4 Weeks

Wire Gauge (Max) :

30 AWG

Screw Size :

M2
