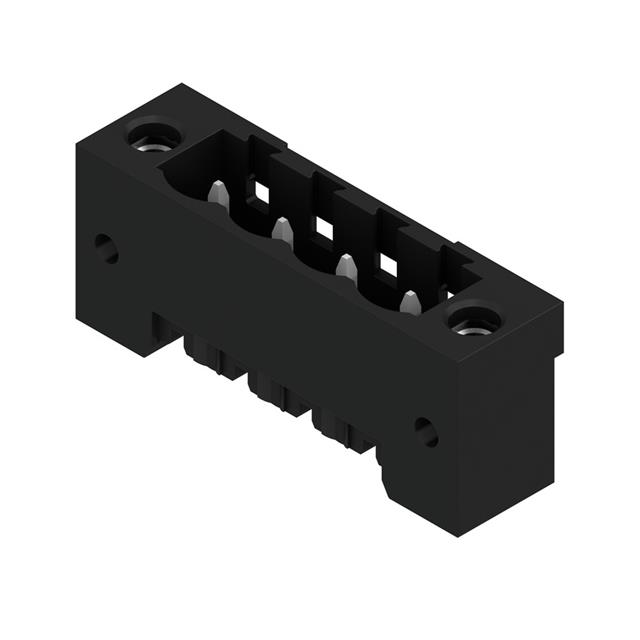

1830100000
Or copy the link below:
- Mfr.Part #
- 1830100000
- Manufacturer
- Weidmuller
- Package / Case
- Datasheet
- Download
- Description
- TERM BLOCK HDR 4POS VERT 5.08MM
- Stock
- 7,450
- In Stock ：
- 7,450
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Weidmuller
- Product Category :
- Headers, Plugs and Sockets
- Factory Lead Time :
- 12 Weeks
- Pitch :
- 0.200 5.08mm
- ECCN Code :
- EAR99
- Voltage - Rated :
- 300V
- Header Orientation :
- Vertical
- RoHS Status :
- RoHS Compliant
- Housing Material :
- Liquid Crystal Polymer (LCP), Glass Filled
- Mounting Type :
- Through Hole
- Approval Agency :
- CSA, UR
- Voltage - IEC :
- 400V
- Contact Tail Length :
- 0.059 1.50mm
- Number of Positions :
- 4
- Termination Style :
- Solder
- Hole Diameter :
- 1.4 mm
- Color :
- Black
- Current Rating :
- 15A
- Safety Approval :
- UL; CSA
- Packaging :
- Bulk
- Number of Decks :
- 1
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Levels :
- 1
- Number of Rows :
- 1
- Type :
- Header, Male Pins, Shrouded (4 Side)
- Series :
- Omnimate SL
- Material Flammability Rating :
- UL94 V-0
- Current - IEC :
- 27.5A
- Operating Temperature :
- -50°C~100°C
- Insulation Height :
- 0.472 12.00mm
- Contact Material :
- COPPER ALLOY
- Flammability Rating :
- UL94 V-0
- Contact Mating Finish :
- Tin
- Current - UL :
- 18.5A
- Number of Ways :
- 4
- Feature :
- Mating and Mounting Flange
- Datasheets
- 1830100000
Bulk 0.200 5.08mm Black 1 Levels Through Hole Header, Male Pins, Shrouded (4 Side) Omnimate SL Liquid Crystal Polymer (LCP), Glass Filled Tin Copper Alloy
1830100000 Overview
Through Hole is the type of mounting for the device.To package the product, a Bulk case is used.The product is a member of the Omnimate SL Series.It is more powerful in many ways due to its Mating and Mounting Flange feature.It operates at an operating temperature of -50°C~100°C.Compared to other Header, Male Pins, Shrouded (4 Side) products, this part has a lot of benefits to offer.
1830100000 Features
Omnimate SL series
1830100000 Applications
There are a lot of Weidmüller
1830100000 Terminal Blocks applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
