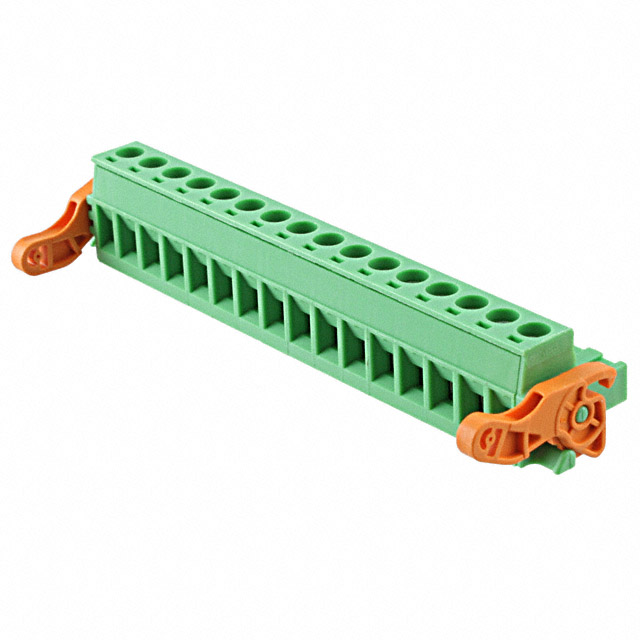

1809021
Or copy the link below:
- Mfr.Part #
- 1809021
- Manufacturer
- Phoenix Contact
- Package / Case
- Datasheet
- Download
- Description
- TERM BLOCK PLUG 16POS STR 5.08MM
- Stock
- 50
- In Stock ：
- 50
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Phoenix Contact
- Product Category :
- Headers, Plugs and Sockets
- Wire Strip Length :
- 7mm
- RoHS Status :
- RoHS Compliant
- Contact Mating Finish :
- Tin
- Connector Type :
- Screw
- Flammability Rating :
- UL94 V-0
- Termination Style :
- Screw - Rising Cage Clamp
- Length :
- 81.9mm
- Number of Positions Per Level :
- 16
- Mount :
- Free Hanging, Plug-In
- Factory Lead Time :
- 7 Weeks
- Current :
- 15A
- Type :
- Plug, Female Sockets
- Screw Size :
- M3
- Feature :
- Ejector Latches
- Orientation :
- Straight
- Voltage - Rated :
- 250V
- Series :
- COMBICON MSTB
- Wire Gauge or Range - mm² :
- 0.2-2.5mm2
- Mounting Type :
- Free Hanging (In-Line)
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Pbfree Code :
- yes
- Insulation Height :
- 0.591 15.00mm
- HTS Code :
- 8536.69.40.40
- Housing Material :
- Polyamide (PA), Nylon
- Width :
- 29.3mm
- Number of Levels :
- 1
- Voltage :
- 300V
- Material Flammability Rating :
- UL94 V-0
- Wire Gauge (Min) :
- 24 AWG
- Approval Agency :
- cULus
- ECCN Code :
- EAR99
- Gender :
- FEMALE
- Plug Wire Entry :
- 180°
- Wire Gauge (Max) :
- 12 AWG
- Reach Compliance Code :
- Unknown
- Packaging :
- Bulk
- Color :
- Green
- Published :
- 2012
- Current - IEC :
- 12A
- Voltage - IEC :
- 630V
- Material :
- Polyamide
- Pitch :
- 0.200 5.08mm
- Wire Gauge or Range - AWG :
- 12-30 AWG
- Current Rating :
- 12A
- Torque - Screw :
- 0.5-0.6 Nm (4.4-5.3 Lb-In)
- Depth :
- 15mm
- Datasheets
- 1809021
Bulk 0.200 5.08mm Green 1 Levels Free Hanging (In-Line) Plug, Female Sockets COMBICON MSTB Polyamide (PA), Nylon Tin
1809021 Overview
You'll get Screw packages.A Free Hanging (In-Line) mounting type is specified for the device.A Bulk case is used for packaging.The product belongs to the COMBICON MSTB Series.A number of aspects of its Ejector Latches feature make it more powerful.By Free Hanging, Plug-In it's mounted.It shares many benefts with other Plug, Female Sockets products.
1809021 Features
COMBICON MSTB series
1809021 Applications
There are a lot of Phoenix Contact
1809021 Terminal Blocks applications.
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
