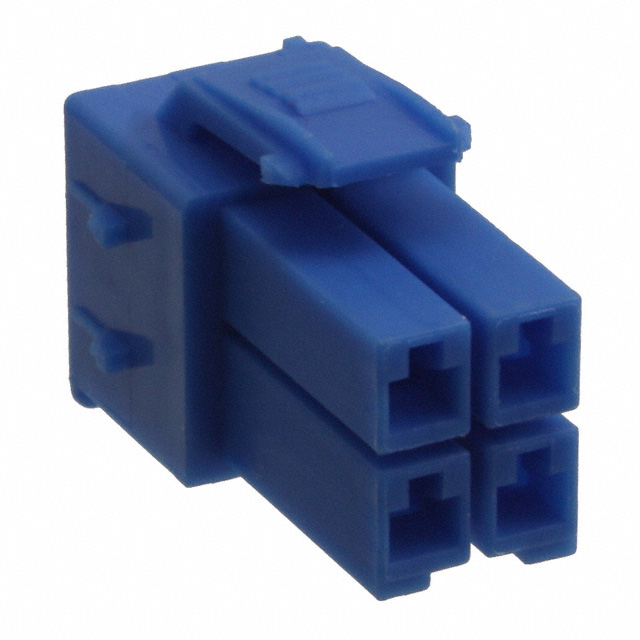

177900-6

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Rectangular Connector Housings

Number of Power Positions :

0

Depth :

20.6mm

Number of Rows :

2

Contact Type :

Female Socket

Total Number of Contacts :

4

VDE Tested :

yes

Pbfree Code :

yes

Insulation Diameter :

3.1 mm

Voltage - Rated :

300V

Wire Gauge (Min) :

18 AWG

Factory Lead Time :

11 Weeks

Wire Gauge (Max) :

28 AWG

Number of Positions :

4

Max Operating Temperature :

221°C

RoHS Status :

RoHS Compliant

Wire/Cable Type :

Discrete

IEC Conformance :

No

Mixed Contacts :

No

Series :

Power Double Lock

Published :

1998

Min Operating Temperature :

-22°C

Row Spacing :

0.181 (4.60mm)

Sealable :

No

Reliability :

COMMERCIAL

Mount :

Free Hanging

Approval Agency :

CSA

Mounting Type :

Free Hanging (In-Line)

Empty Shell :

yes

Connector Type :

PLUG

Flammability Rating :

UL94 V-0

Note :

Contacts Not Included

DIN Conformance :

No

Pitch :

0.156 3.96mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Fastening Type :

Latch Lock

Packaging :

Bulk

Filter Feature :

No

Contact Termination :

Crimp

Housing Material :

Nylon

Lifecycle Status :

ACTIVE (Last Updated: 3 days ago)

Contact Retention :

Without

Color :

Blue

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

ELV :

Compliant

Operating Supply Voltage :

300V

Number of Conductors :

ONE

Max Voltage Rating (AC) :

300V

ECCN Code :

EAR99

Orientation :

Straight

MIL Conformance :

No
