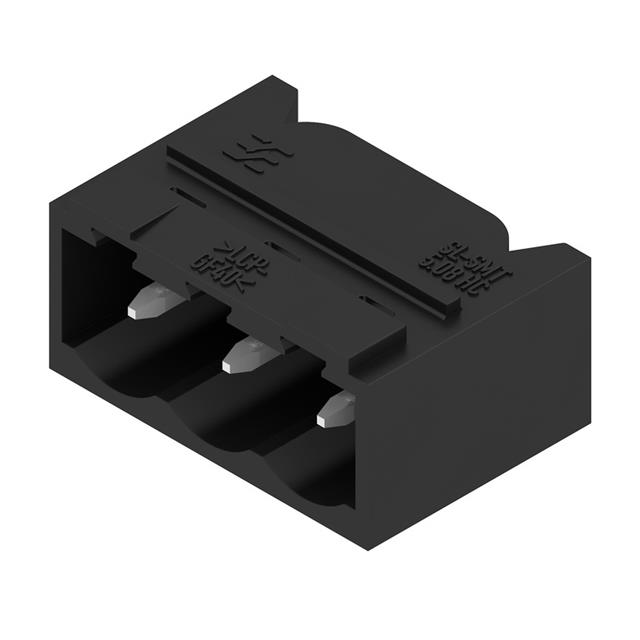

1775014001

Manufacturer :

Weidmuller

Product Category :

Headers, Plugs and Sockets

Packaging :

Tape and Reel (TR)

Operating Temperature :

-50°C~100°C

Radiation Hardening :

No

Published :

2008

Insulation Height :

0.335 8.51mm

IEC Conformance :

No

Current :

10A

Header Orientation :

90°, Right Angle

DIN Conformance :

No

Type :

Header, Male Pins, Shrouded (4 Side)

Flammability Rating :

UL94 V-0

Contact Tail Length :

0.059 1.50mm

Height :

8.5mm

Number of Levels :

1

JESD-609 Code :

e3

Mounting Type :

Through Hole

Number of Rows :

1

Number of Poles :

3

Pbfree Code :

yes

Mixed Contacts :

No

Total Number of Contacts :

3

Width :

12mm

Approval Agency :

CSA, UR

MIL Conformance :

No

Contact Material :

COPPER ALLOY

Voltage - IEC :

400V

Color :

Black

Pitch :

0.200 5.08mm

Termination Style :

Solder

Current - UL :

18.5A

Series :

Omnimate SL

UL Flammability Code :

94V-0

Housing Material :

Liquid Crystal Polymer (LCP), Glass Filled

Filter Feature :

No

Factory Lead Time :

12 Weeks

Length :

18.4mm

Voltage :

300V

Mount :

Through Hole

Contact Mating Finish :

Tin

Voltage - Rated :

300V

RoHS Status :

RoHS Compliant

Lead Free :

Lead Free

Current Rating :

15A

Current - IEC :

27.5A

Hole Diameter :

1.4 mm

Option :

GENERAL PURPOSE

Material Flammability Rating :

UL94 V-0
