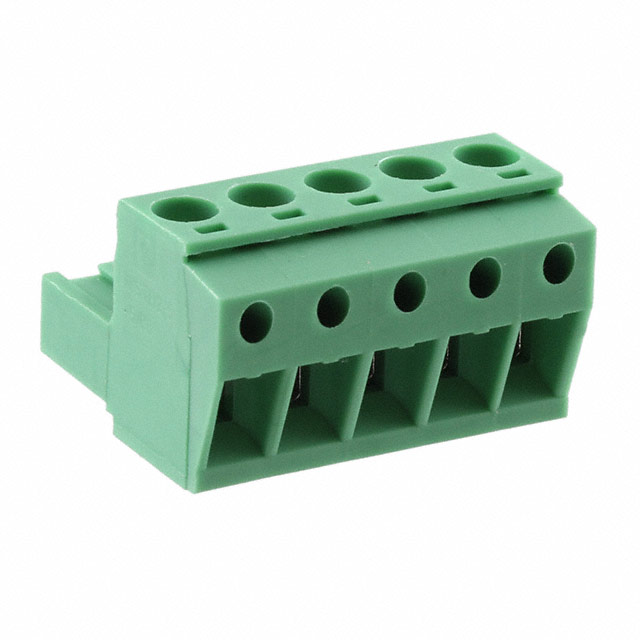

1769049

Manufacturer :

Phoenix Contact

Product Category :

Headers, Plugs and Sockets

Connector Type :

Screw, Socket

Pbfree Code :

yes

Plug Wire Entry :

180°

Number of Ways :

5

Voltage - IEC :

630V

Wire Gauge or Range - mm² :

0.2-2.5mm2

Mount :

Free Hanging

Insulation Height :

0.591 15.00mm

Width :

25.4mm

Factory Lead Time :

4 Weeks

Current - IEC :

12A

Number of Rows :

1

Published :

2011

Flammability Rating :

UL94 V-0

Series :

COMBICON MSTBP

Termination :

Screw

Current Rating :

12A

Housing Material :

Polyamide (PA), Nylon

Color :

Green

Wire Strip Length :

7mm

Weight :

128.999997g

Wire Gauge (Max) :

12 AWG

Height :

21.3mm

Current :

15A

Feature :

Retention Latches (Non-Wire Side)

Voltage :

300V

Wire Gauge (Min) :

24 AWG

Number of Levels :

1

Contact Plating :

Tin

Additional Feature :

PA, 94V-0

Torque - Screw :

0.5-0.6 Nm (4.4-5.3 Lb-In)

Material Flammability Rating :

UL94 V-0

Termination Style :

Screw - Rising Cage Clamp

Wire Gauge or Range - AWG :

12-30 AWG

Screw Size :

M3

Number of Positions :

5

Reach Compliance Code :

Unknown

Pitch :

0.200 5.08mm

ECCN Code :

EAR99

Safety Approval :

UL

Packaging :

Bulk

RoHS Status :

RoHS Compliant

Type :

Plug, Female Sockets

Length :

18mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Mounting Type :

Free Hanging (In-Line)

Voltage - Rated :

250V

Number of Decks :

1
