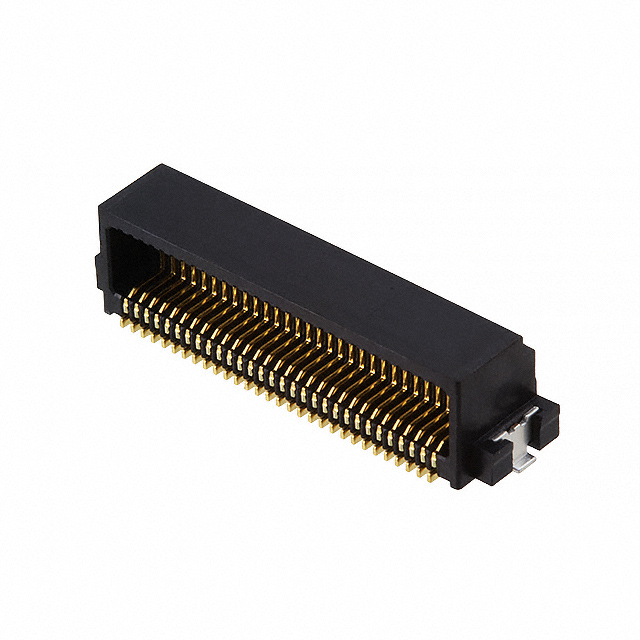

1747025-5
Or copy the link below:
- Mfr.Part #
- 1747025-5
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN PLUG 60POS R/A SMD GOLD
- Stock
- 12,484
- In Stock ：
- 12,484
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Arrays, Edge Type, Mezzanine (Board to Board)
- Factory Lead Time :
- 19 Weeks
- Insulation Resistance :
- 500MOhm
- Max Operating Temperature :
- 221°C
- Contact Plating :
- Gold
- Contact Current Rating :
- 500mA
- PCB Mounting Orientation :
- RIGHT ANGLE
- Stackable :
- No
- Published :
- 2006
- Height Above Board :
- 0.187 4.75mm
- Contact Finish :
- Gold
- Min Operating Temperature :
- -22°C
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Feature :
- Solder Retention
- Number of Rows :
- 2
- Number of Positions :
- 60
- Pitch :
- 0.020 0.50mm
- Depth :
- 4.45mm
- Flammability Rating :
- UL94 V-0
- Length :
- 18.8mm
- Packaging :
- Tape and Reel (TR)
- Plating Thickness :
- 127 nm
- Connector Type :
- Plug, Outer Shroud Contacts
- Housing Color :
- Black
- Mount :
- Surface Mount
- RoHS Status :
- RoHS Compliant
- Radiation Hardening :
- No
- Mounting Type :
- Surface Mount, Right Angle
- Termination :
- SMD/SMT, Solder
- Series :
- Fine Mate
- Number of Contacts :
- 60
- Orientation :
- RIGHT ANGLE
- Housing Material :
- Resin
- Datasheets
- 1747025-5
Plug, Outer Shroud Contacts Tape & Reel (TR) 2 Rows 0.020 0.50mm Surface Mount, Right Angle 60 Positions Fine Mate Gold SMD/SMT, Solder
1747025-5 Overview
Packaging for this item is Plug, Outer Shroud Contacts.It is necessary to use a Tape & Reel (TR) case for packaging the product.There is a mounting type of Surface Mount, Right Angle for this device.This product is part of the Fine Mate Series.In operation, it is possible to ensure that Solder Retention is maintained.This part requires a Surface Mount socket for mounting.You should use it when it's below 221°C.A minimum temperature of -22°C is required for the operation of this device.
1747025-5 Features
Fine Mate series
Package / Case: Tape & Reel (TR)
Mounting Type:Surface Mount, Right Angle
Max Operating temperature at -22°C
1747025-5 Applications
There are a lot of TE Connectivity AMP Connectors
1747025-5 Rectangular Connectors applications.
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
