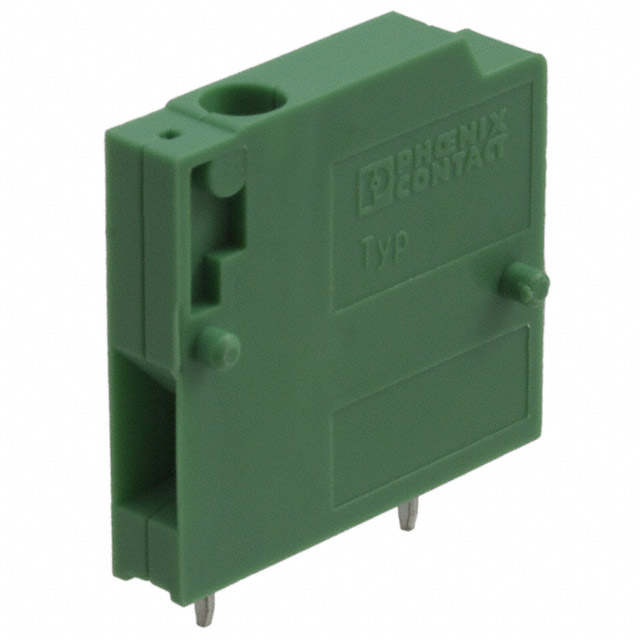

1704004

Manufacturer :

Phoenix Contact

Product Category :

Wire to Board

Flammability Rating :

UL94 V-0

Color :

Green

Torque - Screw :

0.5-0.6 Nm (4.4-5.3 Lb-In)

Screw Thread :

M3

Number of Rows :

1

Voltage - Rated :

400V

HTS Code :

8536.69.40.40

Max Current Rating :

24A

Number of Contacts :

1

Termination :

Solder

ECCN Code :

EAR99

Lead Free :

Lead Free

Current Rating :

24A

Number of Decks :

1

Mount :

Through Hole

Height :

27mm

Additional Feature :

POLYAMIDE, 94V-0

Reach Compliance Code :

Unknown

Voltage :

300V

Wire Termination :

Screw - Rising Cage Clamp

Wire Cross Section :

4 mm2

Packaging :

Bulk

Wire Gauge :

12-28 AWG

Length :

8mm

Pbfree Code :

yes

Connector Type :

Screw

Contact Material :

Copper, Tin

Published :

2011

Max Supply Voltage :

320V

Feature :

Interlocking (Side)

Orientation :

Straight

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Safety Approval :

UL; CSA

Housing Material :

Polyamide (PA), Nylon

RoHS Status :

RoHS Compliant

Number of Ways :

1

Width :

28.3mm

Weight :

4.380001g

Wire Gauge (Min) :

12 AWG

Current :

15A

Wire Gauge (Max) :

28 AWG

Mating Orientation :

Horizontal with Board

Pitch :

5.08mm

Series :

COMBICON KDS

Factory Lead Time :

4 Weeks

Mounting Type :

Through Hole

Terminal and Terminal Block Type :

MODULAR TERMINAL BLOCK
