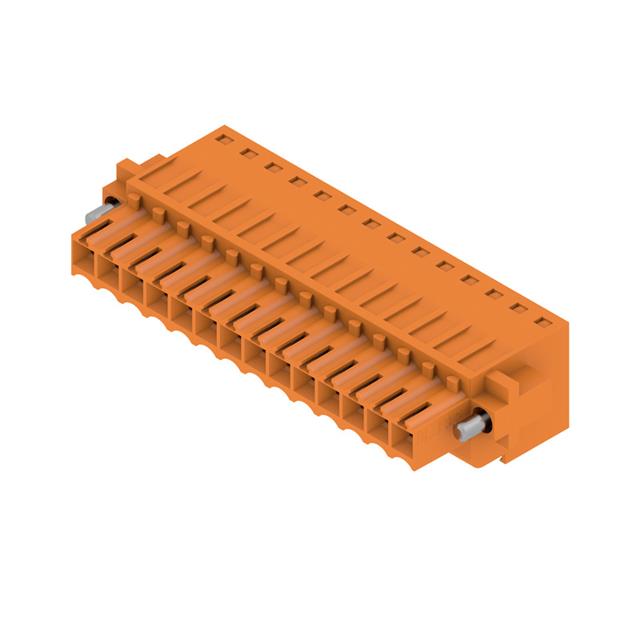

1691000000

Manufacturer :

Weidmuller

Product Category :

Headers, Plugs and Sockets

Mounting Type :

Free Hanging (In-Line)

Number of Contacts :

14

DIN Conformance :

No

Pitch :

0.138 3.50mm

Plug Wire Entry :

180°

Insulation Height :

0.512 13.00mm

Mixed Contacts :

No

Ingress Protection :

IP20

Wire Gauge or Range - mm² :

0.2-1.5mm2

Approval Agency :

CSA, UR

Voltage - Rated :

300V

RoHS Status :

RoHS Compliant

Contact Mating Finish :

Tin

Feature :

Mating Flange

Width :

21.9mm

Type :

Plug, Female Sockets

JESD-609 Code :

e3

Operating Temperature :

-50°C~100°C

Length :

64.8mm

Additional Feature :

High Density

Height :

13mm

Voltage :

300V

UL Flammability Code :

94V-0

Orientation :

Straight

Lead Free :

Lead Free

Material Flammability Rating :

UL94 V-0

Number of Levels :

1

Published :

2008

Termination Style :

Screwless - Spring Cage, Tension Clamp

Flammability Rating :

UL94 V-0

Stripping Length :

10mm

Filter Feature :

No

Factory Lead Time :

12 Weeks

Number of Rows :

1

IEC Conformance :

No

Wire Gauge or Range - AWG :

14-26 AWG

Series :

Omnimate BL

Option :

GENERAL PURPOSE

Current - IEC :

14.5A

Wire Gauge (Min) :

14 AWG

Pbfree Code :

yes

MIL Conformance :

No

Housing Material :

Polybutylene Terephthalate (PBT)

Packaging :

Bulk

Voltage - IEC :

320V

Mount :

Cable, Free Hanging

Wire Gauge (Max) :

26 AWG

Radiation Hardening :

No

Contact Material :

COPPER ALLOY

Termination :

Screwless

Color :

Orange

Current Rating :

14.5A

Current :

10A
