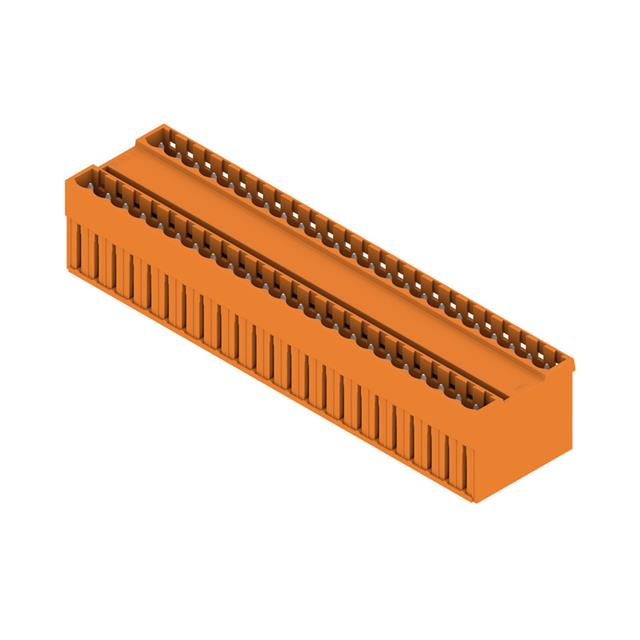

1615020000

Manufacturer :

Weidmuller

Product Category :

Headers, Plugs and Sockets

Voltage - Rated :

300V

Contact Tail Length :

0.126 3.20mm

Option :

GENERAL PURPOSE

Flammability Rating :

UL94 V-0

Positions Per Level :

23

Type :

Header, Male Pins, Shrouded (4 Side)

RoHS Status :

RoHS Compliant

Number of Rows :

2

JESD-609 Code :

e3

Width :

28.5mm

MIL Conformance :

No

Lead Free :

Lead Free

Filter Feature :

No

Termination Style :

Solder

Current Rating :

10A

Housing Material :

Polybutylene Terephthalate (PBT)

Insulation Resistance :

1MOhm

Total Number of Contacts :

46

Voltage - IEC :

400V

Number of Poles :

46

IEC Conformance :

No

Current - IEC :

11A

Approval Agency :

CSA, UR

DIN Conformance :

No

Voltage :

300V

Insulation Height :

0.866 22.00mm

Height :

22mm

Hole Diameter :

1.3 mm

Material Flammability Rating :

UL94 V-0

Length :

117mm

Contact Material :

COPPER ALLOY

Factory Lead Time :

12 Weeks

Published :

2008

Packaging :

Bulk

Pbfree Code :

yes

Number of Levels :

2

Current :

10A

Mixed Contacts :

No

Contact Mating Finish :

Tin

Mount :

Through Hole

Color :

Orange

Mounting Type :

Through Hole

UL Flammability Code :

94V-0

Series :

Omnimate SL

Radiation Hardening :

No

Pitch :

0.197 5.00mm

Operating Temperature :

-50°C~100°C

Header Orientation :

Vertical
