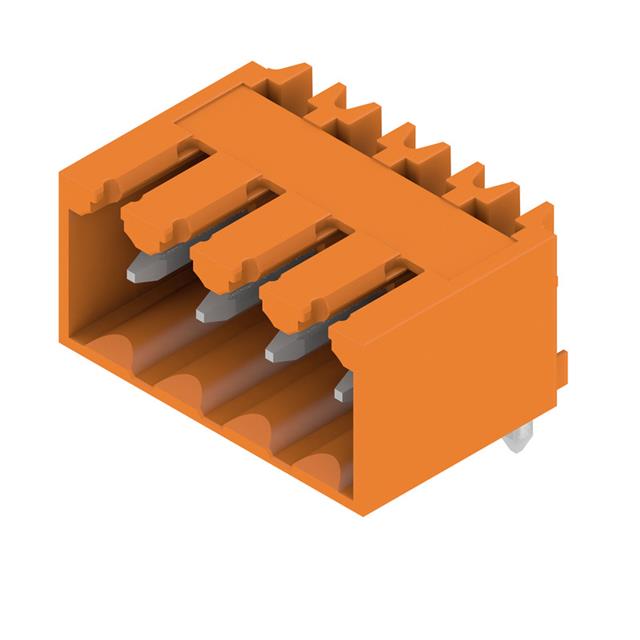

1605090000

Manufacturer :

Weidmuller

Product Category :

Headers, Plugs and Sockets

Contact Material :

COPPER ALLOY

Header Orientation :

90°, Right Angle

Current - IEC :

17A

Max Current Rating :

10A

Insulation Resistance :

1MOhm

Voltage - Rated :

300V

Approval Agency :

CSA, UR

Number of Rows :

1

Series :

Omnimate SL

Total Number of Contacts :

4

Housing Material :

Polybutylene Terephthalate (PBT)

Hole Diameter :

1.3 mm

Insulation Height :

0.298 7.57mm

Pbfree Code :

yes

Mixed Contacts :

No

Width :

11.1mm

Orientation :

RIGHT ANGLE

Material Flammability Rating :

UL94 V-0

Mounting Type :

Through Hole

Mount :

Through Hole

Voltage - IEC :

320V

JESD-609 Code :

e3

Current :

10A

Option :

GENERAL PURPOSE

Termination Style :

Solder

Lead Free :

Lead Free

Filter Feature :

No

Contact Mating Finish :

Tin

Length :

15.4mm

Color :

Orange

DIN Conformance :

No

Number of Poles :

4

Contact Tail Length :

0.126 3.20mm

Radiation Hardening :

No

Ingress Protection :

IP10

MIL Conformance :

No

Operating Temperature :

-50°C~100°C

RoHS Status :

RoHS Compliant

Number of Levels :

1

Current Rating :

14.5A

Factory Lead Time :

16 Weeks

Packaging :

Bulk

Depth :

11.1mm

Voltage :

300V

Published :

2008

IEC Conformance :

No

Pitch :

0.138 3.50mm

Flammability Rating :

UL94 V-0

Type :

Header, Male Pins, Shrouded (4 Side)
