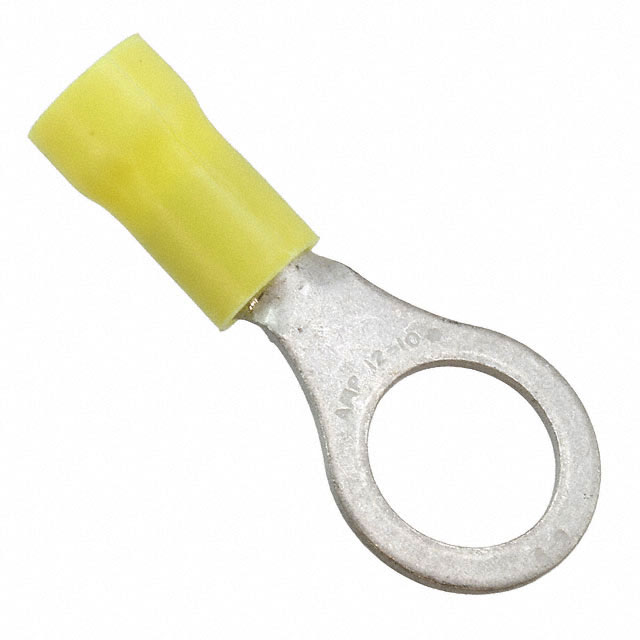

160300
Or copy the link below:
- Mfr.Part #
- 160300
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RING CIRC 10-12AWG M10
- Stock
- 20,012
- In Stock ：
- 20,012
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Ring Connectors
- Insulation :
- Insulated
- Wire Gauge :
- 10-12 AWG
- Pbfree Code :
- yes
- Factory Lead Time :
- 9 Weeks
- Max Operating Temperature :
- 90°C
- Voltage - Rated AC :
- 600V
- Heavy Duty :
- No
- Material Thickness :
- 1mm
- Wire Gauge (Max) :
- 10 AWG
- Length - Overall :
- 1.433 36.40mm
- Contact Plating :
- Tin
- Min Operating Temperature :
- -25°C
- Stud/Tab Size :
- M10 Stud
- Wire/Cable Diameter :
- 6.3 mm
- Stud Diameter :
- 10.3886 mm
- Wire Cross Section :
- 6 mm2
- Feature :
- Serrated Termination
- Number of Holes :
- 1
- ECCN Code :
- EAR99
- Packaging :
- Bulk
- Terminal Type :
- Circular
- Mounting Type :
- Free Hanging (In-Line)
- Color :
- Yellow
- Lifecycle Status :
- ACTIVE (Last Updated: 1 day ago)
- Lead Free :
- Not Applicable
- Wire Gauge (Min) :
- 12 AWG
- Terminal and Terminal Block Type :
- RING TERMINAL
- Insulation Diameter :
- 0.150 ~ 0.248 (3.81mm ~ 6.30mm)
- Depth :
- 15.1mm
- Termination :
- Crimp
- REACH SVHC :
- No SVHC
- HTS Code :
- 8536.90.40.00
- Published :
- 2006
- Insulation Material :
- PVC
- Contact Material :
- Copper
- Wire/Cable Gauge :
- 10 AWG
- ELV :
- Compliant
- Stud Size :
- M10
- Length :
- 36.322mm
- Mount :
- Free Hanging
- Width - Outer Edges :
- 0.594 15.09mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- RoHS Status :
- RoHS Compliant
- Thickness :
- 0.039 0.99mm
- Insulated Wire Support :
- yes
- Tongue Thickness :
- 990.6μm
- Series :
- Plasti-Grip
- Datasheets
- 160300
160300 datasheet pdf and Terminals - Ring Connectors product details from TE Connectivity AMP Connectors stock available at Xinshop
