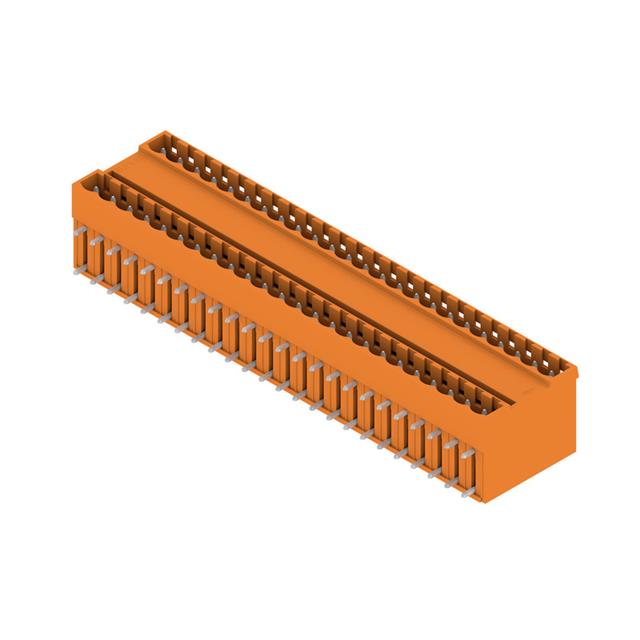

1602010000

Manufacturer :

Weidmuller

Product Category :

Headers, Plugs and Sockets

Gender :

Male

Operating Temperature :

-50°C~100°C

Factory Lead Time :

12 Weeks

Number of Poles :

48

Type :

Header, Male Pins, Shrouded (4 Side)

Current - UL :

10A

Contact Mating Finish :

Tin

Voltage - Rated :

300V

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Material Flammability Rating :

UL94 V-0

Positions Per Level :

24

Radiation Hardening :

No

IEC Conformance :

No

Flammability Rating :

UL94 V-0

Number of Rows :

2

Header Orientation :

90°, Right Angle

DIN Conformance :

No

Approval Agency :

CSA, UR

Filter Feature :

No

Hole Diameter :

1.3 mm

Contact Tail Length :

0.126 3.20mm

Insulation Height :

1.104 28.04mm

MIL Conformance :

No

Termination Style :

Solder

Current - IEC :

11A

Pitch :

0.200 5.08mm

Mixed Contacts :

No

Voltage - UL :

300V

Color :

Orange

Packaging :

Bulk

JESD-609 Code :

e3

Number of Levels :

2

Pbfree Code :

yes

Current Rating :

9.5A

Total Number of Contacts :

48

Housing Material :

Polybutylene Terephthalate (PBT)

UL Flammability Code :

94V-0

Option :

GENERAL PURPOSE

Mount :

Through Hole

Mounting Type :

Through Hole

Contact Material :

COPPER ALLOY

Series :

Omnimate SL

Voltage - IEC :

400V

RoHS Status :

RoHS Compliant
