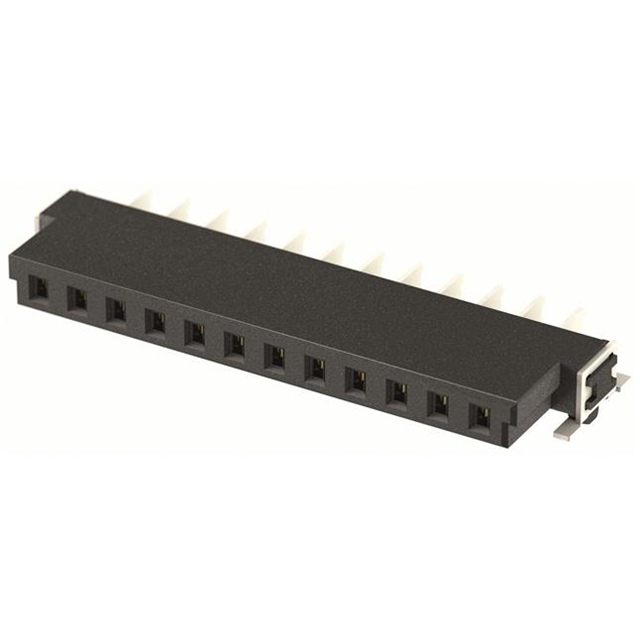

15650122701000

Manufacturer :

HARTING

Product Category :

Headers, Receptacles, Female Sockets

Mounting Type :

Through Hole, Right Angle

Material Flammability Rating :

UL94 V-0

Product Status :

Active

Features :

Board Guide, Solder Retention

Series :

har-flex®

Maximum Operating Temperature :

+ 125 C

Contact Finish Thickness - Mating :

-

Fastening Type :

Push-Pull

Row Spacing - Mating :

-

Pitch - Mating :

0.100 (2.54mm)

Voltage Rating :

180V

Housing Material :

Liquid Crystal Polymer (LCP)

Number of Positions Loaded :

All

Connector Type :

Receptacle

Minimum Operating Temperature :

- 55 C

Ingress Protection :

-

Contact Finish Thickness - Post :

-

Insulation Resistance :

100 GOhms

Flammability Rating :

UL 94 V-0

Mated Stacking Heights :

-

Contact Material :

COPPER ALLOY

Insulation Material :

Liquid Crystal Polymer (LCP)

Contact Shape :

Square

Contact Finish - Post :

Tin

Insulation Color :

Black

Number of Rows :

1 Row

Operating Temperature :

-55°C ~ 125°C

Termination :

Solder

Current Rating (Amps) :

19A

Number of Positions :

12 Position

Mounting Angle :

RIGHT ANGLE

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;

RoHS :

Details

Contact Finish - Mating :

Gold

Termination Style :

Solder

Applications :

GENERAL PURPOSE

Insulation Height :

0.120 (3.05mm)

Mounting Style :

PCB Mount

Contact Length - Post :

0.087 (2.20mm)

Contact Plating :

Gold

Style :

Board to Board or Cable

Product :

Connectors

Current Rating :

19 A

Contact Type :

Female Socket

Pitch :

2.54 mm

Packaging :

Cut Tape
