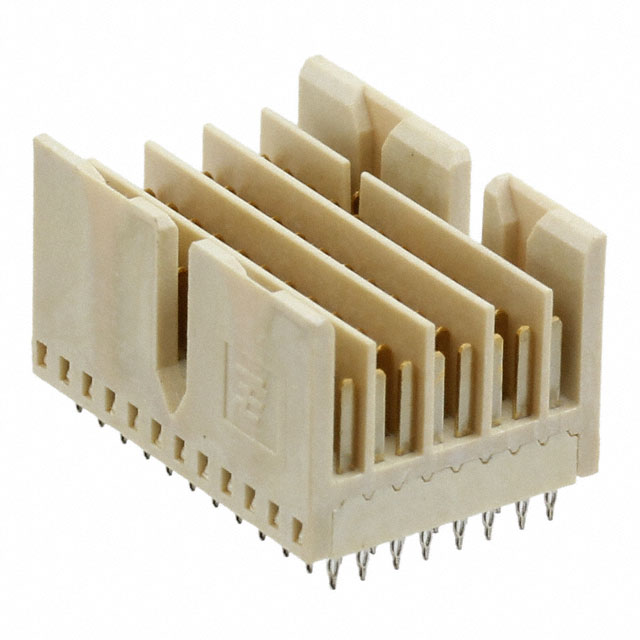

1551012-1
Or copy the link below:
- Mfr.Part #
- 1551012-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER HOT-PLUG 96POS PCB
- Stock
- 47,610
- In Stock ：
- 47,610
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- Number of Pairs :
- 96
- Current Rating :
- 500mA
- Circuit Application :
- Signal
- Operating Supply Voltage :
- 30V
- Contact Plating :
- Tin
- Color :
- Natural
- Connector Type :
- Header, Male Pins
- PCB Thickness :
- 1.2mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Width :
- 12.5222mm
- Hole Diameter :
- 400 µm
- Housing Material :
- Polymer
- Sealable :
- No
- Mount :
- Vertical
- Min Operating Temperature :
- -67°C
- Packaging :
- Tray
- Housing Color :
- Natural
- PCB Mounting Orientation :
- Vertical
- Number of Contacts :
- 96
- Connector Style :
- Hot-Plug
- Mating Alignment :
- With
- Factory Lead Time :
- 16 Weeks
- Impedance :
- 30Ohm
- Number of Rows :
- 8
- Make First / Break Last :
- No
- Row Spacing :
- 1.27 mm
- Number of Columns :
- 12
- Contact Current Rating :
- 500mA
- Stackable :
- yes
- Mounting Type :
- Through Hole
- Flammability Rating :
- UL94 V-0
- Height :
- 9.4996mm
- Max Operating Temperature :
- 221°C
- Series :
- Z-PACK Slim UHD
- Published :
- 2010
- Length :
- 17.3mm
- Durability Rating :
- 200 Cycles
- Shrouding :
- Unshrouded
- Number of Positions Loaded :
- All
- Plating Thickness :
- 2.5μm
- Stack Height :
- 1.6mm
- Preloaded :
- yes
- Contact Style :
- Press-Fit
- Number of Positions :
- 96
- Pitch :
- 1.45mm
- RoHS Status :
- RoHS Compliant
- Length - Tail :
- 1.6mm
- Underplate Material :
- Nickel
- ELV :
- Compliant
- Orientation :
- Vertical
- Max Current Rating :
- 500mA
- Termination :
- Press-Fit
- Number of Signal Positions :
- 192
- Lifecycle Status :
- ACTIVE (Last Updated: 1 day ago)
- Datasheets
- 1551012-1
Z-PACK Slim UHD Series Header, Male Pins Press-Fit Natural 96 Positions Pitch: 1.45mm Tray Through Hole
1551012-1 Overview
It comes in Header, Male Pins packaging.The device's mounting type is Through Hole.In order to package the product, a Tray case is used.It belongs to the Z-PACK Slim UHD Series of products.It's best to use it when the temperature is below 221°C.This device must operate at a minimum temperature of -67°C.The part is mounted by Vertical.With a supply voltage of 30V, this Backplane Connector works.
1551012-1 Features
Z-PACK Slim UHD series
1551012-1 Applications
There are a lot of TE Connectivity AMP Connectors
1551012-1 Backplane Connectors applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
