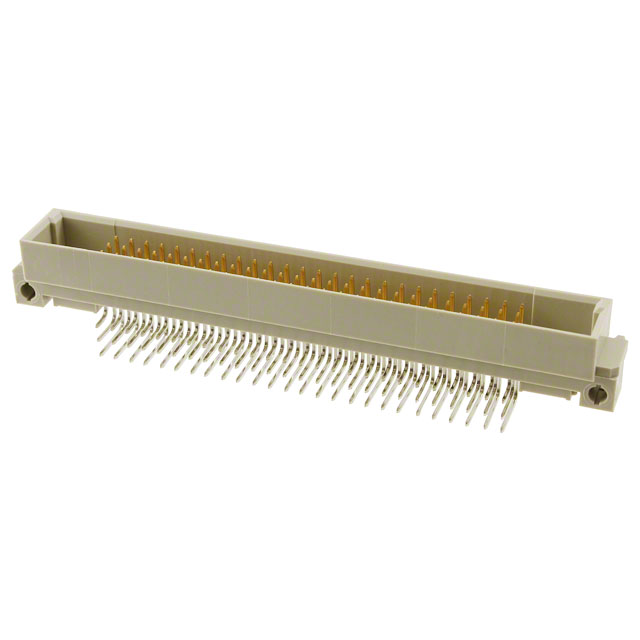

148411-5

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

DIN 41612

Operating Temperature :

-55°C~125°C

Row Spacing :

2.54 mm

JESD-609 Code :

e0

Mixed Contacts :

yes

Body Depth :

0.698 inch

Number Of PCB Rows :

3

PCB Mounting Orientation :

Vertical

Contact Material :

Bronze

Orientation :

RIGHT ANGLE

Name of Rows Loaded :

A,B,C

PCB Contact Pattern :

RECTANGULAR

Polarization Key :

POLARIZED HOUSING

Factory Lead Time :

25 Weeks

Preloaded :

yes

Current Rating :

1.5A

Series :

Eurocard

Make First / Break Last :

No

Pbfree Code :

No

Lead Free :

Contains Lead

MIL Conformance :

No

Number of Rows :

3

Lead Length :

2.79mm

RoHS Status :

Non-RoHS Compliant

Style :

M

Mount :

Through Hole

Option :

GENERAL PURPOSE

DIN Conformance :

yes

Termination Post Length :

2.79mm

Connector Type :

Plug, Male Pins

Width :

11.1mm

Lifecycle Status :

ACTIVE (Last Updated: 6 days ago)

ECCN Code :

EAR99

IEC Conformance :

yes

Insulation Resistance :

1000000000000Ohm

Material Flammability Rating :

UL94 V-0

Length - Tail :

2.92mm

Number of Columns :

24

Number of Positions Loaded :

78

Number of Positions :

80 (78 + 2 Power)

Max Current Rating :

1.5A

Color :

Grey

Contact Finish :

Gold or Gold-Palladium

Flammability Rating :

UL94 V-0

Filter Feature :

No

Packaging :

Bulk

Reference Standard :

UL, CSA

UL Flammability Code :

94V-0

Length :

94mm

Housing Material :

Thermoplastic

Contact Plating :

Lead, Nickel, Tin

Total Number of Contacts :

80

ELV :

Compliant

Material - Insulation :

Polyester, Glass Filled

Level, Class :

2

Published :

1999

Dielectric Withstanding Voltage :

1000VAC V

Termination :

Solder

Mounting Type :

Through Hole, Right Angle

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Pitch :

0.100 2.54mm
