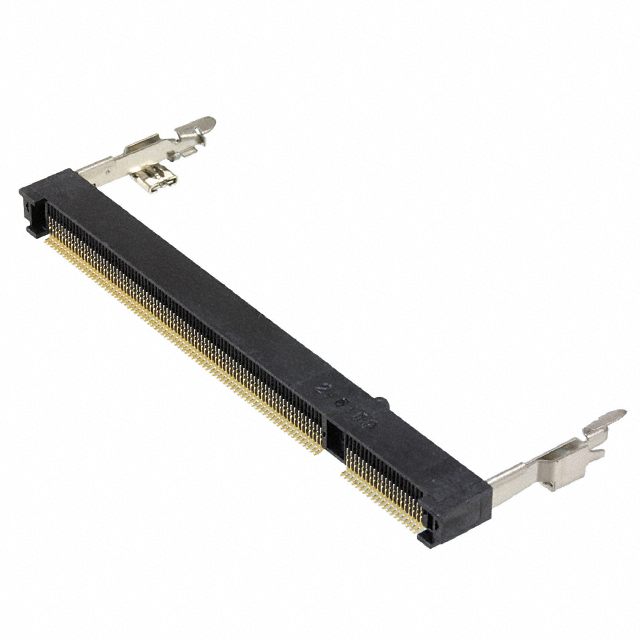

1473006-4

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Inline Module Sockets

Insulation Resistance :

50000000Ohm

Contact Rating (Current) :

500mA

Reference Standard :

UL

MIL Conformance :

No

Plating Thickness :

FLASH inch

Flammability Rating :

UL94 V-0

ELV :

Compliant

Depth :

26mm

Circuit Application :

Power

Number of Rows :

2

JESD-609 Code :

e4

Contact Plating :

Gold

Mount :

Surface Mount

Row Spacing - Mating :

6.1976 mm

Contact Style :

BELLOWED TYPE

Current Rating (Max) :

500mA

Lead Free :

Lead Free

Min Operating Temperature :

-67°C

Lifecycle Status :

ACTIVE (Last Updated: 1 day ago)

Option :

GENERAL PURPOSE

Connector Type :

Socket

RoHS Status :

RoHS Compliant

Pbfree Code :

yes

Memory Type :

DDR, SDRAM

Polarization Key :

POLARIZED KEY

Gender :

FEMALE

Lead Pitch :

600μm

Filter Feature :

No

Number of Contacts :

200

Mixed Contacts :

No

UL Flammability Code :

94V-0

Stack Height :

5.2mm

Termination :

Solder

Housing Color :

Black

DIN Conformance :

No

Max Operating Temperature :

185°C

Number Of PCB Rows :

2

Voltage - Rated :

1.8V

REACH SVHC :

Unknown

Sealable :

No

Housing Material :

Thermoplastic

Pitch :

609.6μm

Reliability :

COMMERCIAL

Orientation :

RIGHT ANGLE

Length :

71.5mm

PCB Contact Pattern :

STAGGERED

IEC Conformance :

No

Number of Conductors :

ONE
