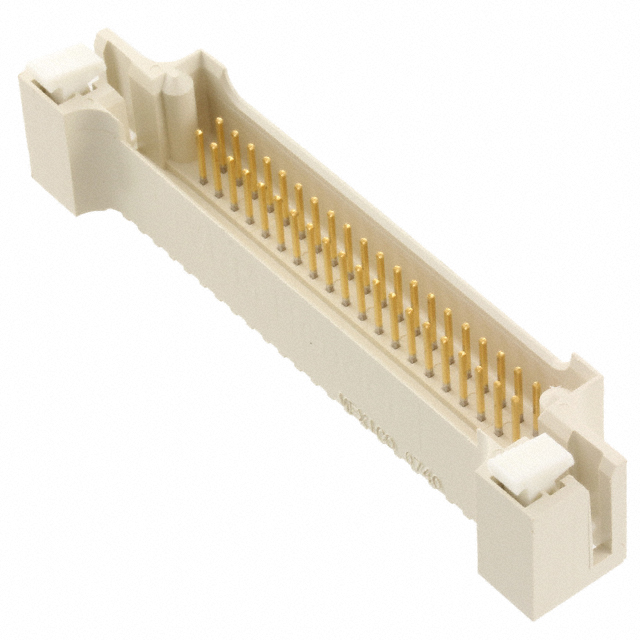

146315-1

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Headers, Male Pins

Reference Standard :

UL, CSA

Contact Style :

SQ PIN-SKT

Mounting Type :

BOARD

UL Flammability Code :

94V-0

Additional Feature :

LATCHED

Mating Contact Pitch :

0.1 inch

Operating Supply Voltage :

250V

Dielectric Withstanding Voltage :

750VAC V

Pbfree Code :

No

Reach Compliance Code :

Compliant

Body Breadth :

0.658 inch

Circuit Application :

Signal

Mixed Contacts :

No

Number Of PCB Rows :

2

Body/Shell Style :

Receptacle

Housing Color :

Black

Housing Material :

Thermoplastic

Connector Type :

BOARD CONNECTOR

Rated Current (Signal) :

3A

Row Spacing - Mating :

2.54 mm

Polarization Key :

POLARIZED HOUSING

Reliability :

COMMERCIAL

Body Depth :

0.55 inch

PCB Thickness :

1.57mm

Termination Type :

Solder

Mounting Option 1 :

LATCH and EJECT

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Contact Material :

NOT SPECIFIED

Insulation Resistance :

1GOhm

Lead Free :

Contains Lead

Contact Pattern :

RECTANGULAR

PCB Contact Pattern :

RECTANGULAR

Contact Finish - Mating :

NOT SPECIFIED

Lifecycle Status :

ACTIVE (Last Updated: 2 days ago)

Contact Plating :

Gold

MIL Conformance :

No

Contact Finish Thickness - Mating :

762 nm

Mounting Style :

Straight

Body Length or Diameter :

3.1 inch

Contact Gender :

Male

RoHS Status :

Non-RoHS Compliant

IEC Conformance :

No

Color :

White

Filter Feature :

No

Plating Thickness :

30μin

Operating Temperature (Max) :

105°C

Mounting Option 2 :

LOCKING

Packaging :

Bulk

Option :

GENERAL PURPOSE

Mating Alignment :

With

Number of Contacts :

40

Orientation :

Vertical

PCB Mount Alignment :

Without

Number of Conductors :

ONE

ECCN Code :

EAR99

DIN Conformance :

No

Operating Temperature (Min) :

-65°C

Number of Rows :

2
