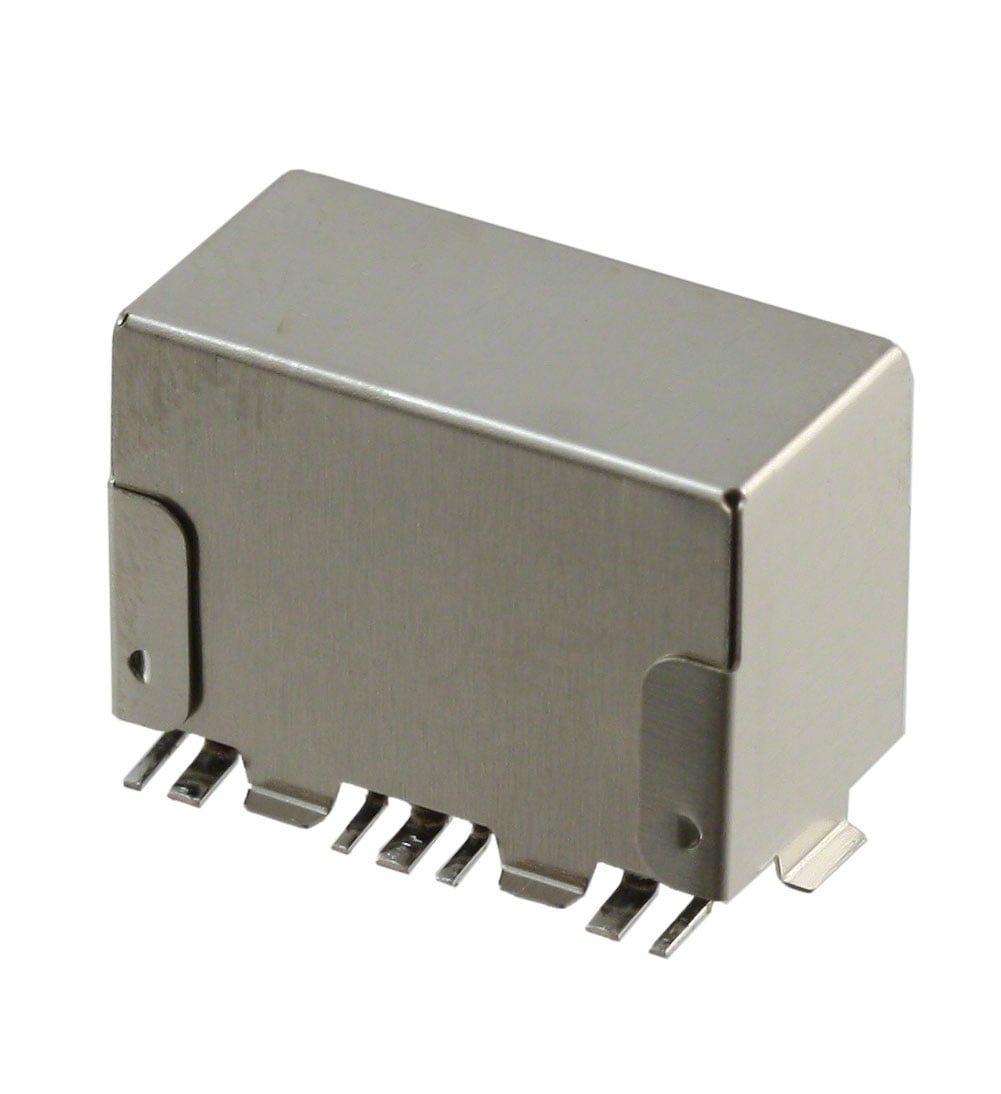

1462052-6
Or copy the link below:
- Mfr.Part #
- 1462052-6
- Manufacturer
- TE Connectivity Potter & Brumfield Relays
- Package / Case
- Datasheet
- Download
- Description
- RELAY RF SPDT 2A 12V
- Stock
- 683
- In Stock ：
- 683
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity Potter & Brumfield Relays
- Product Category :
- High Frequency (RF) Relays
- Published :
- 2008
- Operate Time :
- 5ms
- Must Operate Voltage :
- 9VDC
- Switching Time :
- 17 ms
- Contact/Output Supply Type :
- AC/DC
- Depth :
- 9.4mm
- Must Release Voltage :
- 1.2VDC
- ELV :
- Compliant
- Input Switching Control Type :
- Random
- Number of Pins :
- 22
- Width :
- 7.493mm
- Moisture Sensitivity Level (MSL) :
- 3 (168 Hours)
- Coil Type :
- Non Latching
- VSWR :
- 1.4
- Operating Frequency-Max :
- 6000MHz
- Throw Configuration :
- SPDT
- Insertion Loss (dB) :
- -0.15 dB
- Voltage - Rated AC :
- 250V
- Contact Current(DC)-Max :
- 2A
- Max Current Rating :
- 2A
- Dielectric Strength Between Open Contacts :
- 600 Vrms
- Lifecycle Status :
- ACTIVE (Last Updated: 5 days ago)
- Relay Type :
- Relay
- Dielectric Strength Between Coil and Contacts :
- 1000 Vrms
- Contact Plating :
- Gold
- Packaging :
- Tape and Reel (TR)
- Pbfree Code :
- yes
- Height :
- 10.5mm
- ECCN Code :
- EAR99
- Additional Feature :
- RELEASE TIME TAKEN WITH DIODE IN PARALLEL
- Length :
- 378.46mm
- Termination Style :
- Gull wing
- Characteristic Impedance :
- 50Ohm
- Contact Form :
- SPDT (1 Form C)
- Body Breadth :
- 7.6 mm
- Coil Voltage :
- 12VDC
- Contact Current(AC)-Max :
- 2A
- Coil Power :
- 140mW
- Operating Temperature :
- -55°C~85°C
- Physical Dimension :
- 15mm x 7.6mm x 10.6mm
- Weight :
- 85.048569g
- Release Time :
- 9 ms
- Contact Material :
- Silver (Ag), Gold (Au)
- Isolation Max :
- -30 dB
- Reference Standard :
- UL
- Mount :
- Surface Mount
- Contact (AC) Max Power Rating R Load :
- 62.5VA@250VAC
- Factory Lead Time :
- 19 Weeks
- Switching Voltage :
- 250VAC 220VDC -Max
- Relay Action :
- Momentary
- Lead Free :
- Lead Free
- Coil/Input Supply Type :
- DC
- Input Power-Max (CW) :
- 50W
- Max Voltage Rating (AC) :
- 250V
- Max Voltage Rating (DC) :
- 220V
- Number of Terminations :
- 6
- Mounting Type :
- Surface Mount
- Coil Voltage (DC) :
- 12V
- Coil Current :
- 11.7mA
- Sealing :
- IP67; RT3
- Series :
- HF6, AXICOM
- HTS Code :
- 8536.49.00.50
- Packing Method :
- BOX; TAPE AND REEL
- RoHS Status :
- RoHS Compliant
- Coil Resistance :
- 1.03kOhm
- Termination :
- PCB
- Contact Voltage Rating (DC) :
- 220V
- Datasheets
- 1462052-6
1462052-6 datasheet pdf and High Frequency (RF) Relays product details from TE Connectivity Potter & Brumfield Relays stock available at
