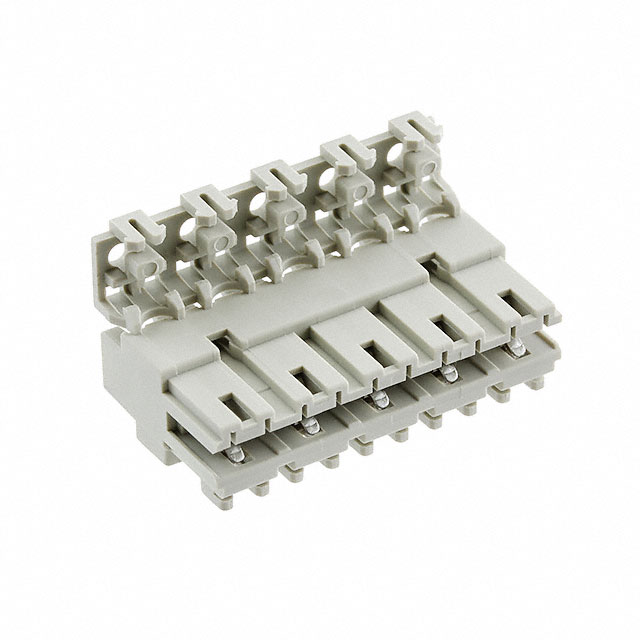

1394918-5
Or copy the link below:
- Mfr.Part #
- 1394918-5
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 5POS IDC TIN
- Stock
- 6,543
- In Stock ：
- 6,543
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Free Hanging, Panel Mount
- ELV :
- Compliant
- Mount :
- Free Hanging
- Contact Type :
- Female Socket
- Series :
- DuoPlug
- Approval Agency :
- UL
- RoHS Status :
- RoHS Compliant
- Insulation Diameter :
- 2.4 mm
- Wire/Cable Gauge :
- 20 AWG
- Contact Plating :
- Tin
- Contact Current Rating :
- 6A
- Operating Supply Voltage :
- 250V
- Connector Type :
- Receptacle
- Pitch :
- 0.197 5.00mm
- Published :
- 2010
- Lifecycle Status :
- ACTIVE (Last Updated: 2 weeks ago)
- Number of Positions :
- 5
- Color :
- Gray
- Packaging :
- Tray
- PCB Mounting Orientation :
- RIGHT ANGLE
- Preloaded :
- yes
- Min Operating Temperature :
- -40°C
- Contact Finish :
- Tin
- Orientation :
- RIGHT ANGLE
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Circuit Application :
- Signal
- Number of Rows :
- 1
- Housing Material :
- Nylon
- Wire Type :
- Discrete
- Cable Termination :
- IDC
- Flammability Rating :
- UL94 V-0
- PCB Thickness :
- 1.4986mm
- Wire/Cable Diameter :
- 1.397 mm
- Housing Color :
- Grey
- Feature :
- Mates to PCB
- Mounting Type :
- Free Hanging (In-Line), Right Angle
- Termination :
- IDC
- Number of Contacts :
- 5
- Height :
- 7.2898mm
- Factory Lead Time :
- 16 Weeks
- Max Operating Temperature :
- 110°C
- Current Rating :
- 6A
- Wire/Cable Type :
- Discrete
- Datasheets
- 1394918-5
