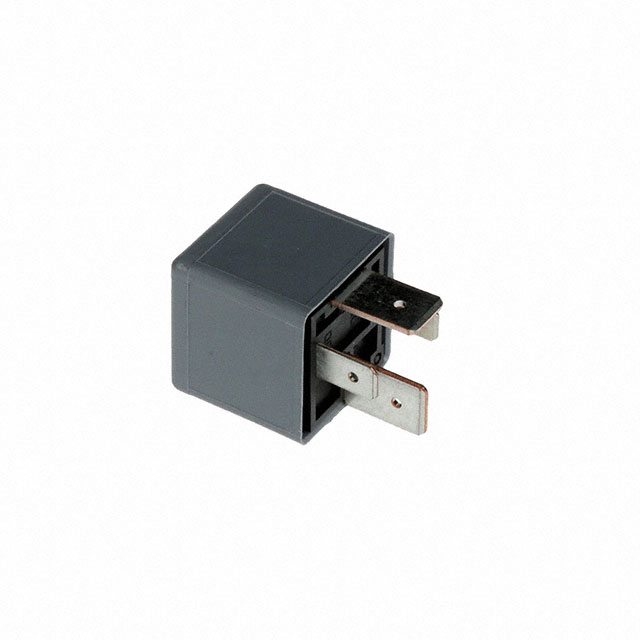

1393304-5
Or copy the link below:
- Mfr.Part #
- 1393304-5
- Manufacturer
- TE Connectivity Potter & Brumfield Relays
- Package / Case
- Dust Cover
- Datasheet
- Download
- Description
- RELAY GEN PURPOSE SPST 70A 24V
- Stock
- 539
- In Stock ：
- 539
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity Potter & Brumfield Relays
- Product Category :
- Power Relays, Over 2 Amps
- Features :
- -
- Number of Poles :
- 1
- Contact Material :
- Silver
- Seal :
- Sealed
- Product Length :
- 25.9 mm
- Coil Current :
- 89.55(mA)
- Brand :
- TE Connectivity / AMP
- Base Product Number :
- 1393304
- Coil Power :
- 2.1W
- Contact Termination :
- Quick Connect
- Pin Count :
- 4
- Series :
- *
- Minimum Operating Temperature :
- -40°C
- Coil Termination :
- Quick Connect
- Depth :
- 25.9mm
- Contact Current Rating :
- 240(A)
- Product Height (mm) :
- 57.9(mm)
- Dropout Volt :
- 4VDC
- Termination Style :
- 0.25Quick Connect
- Contact Rating (Current) :
- 70 A
- Switching Voltage :
- 24 VDC
- Product Category :
- Automotive Relays
- Operating Temp Range :
- -40C to 125C
- Coil Suppression Diode :
- No
- Contact Configuration :
- SPST
- Operate Time :
- 7 ms
- RoHS :
- Details
- Standards Met :
- IEC
- Switching Current :
- 70A
- Coil Insulation :
- -
- Coil Type :
- Non-Latching
- Manufacturer :
- TE Connectivity
- Product Status :
- Obsolete
- Length :
- 25.9mm
- Operating Temperature :
- -40 to 125 °C
- Mounting Type :
- Plug In
- Supplier Package :
- Dust Cover
- Maximum Operating Temperature :
- +125°C
- Coil Resistance :
- 268 Ohm
- Product Length (mm) :
- 25.9(mm)
- Relay Type :
- GENERAL PURPOSE
- Product Depth (mm) :
- 29.9(mm)
- Minimum Dropout Voltage :
- 4 VDC
- Dropout Volt (Min) :
- 4VDC
- Seal Rating :
- -
- Contact Form :
- 1 FORM A
- Mounting Style :
- Plug-In
- Terminal Type :
- Plug In
- Subcategory :
- Relays
- Must Operate Voltage :
- 16 VDC
- Height :
- 24.9mm
- Coil Voltage :
- 24V dc
- Relay Construction :
- Non-Latching
- Coil Voltage DC :
- 24V
- Rad Hardened :
- No
- Mounting :
- Plug-In
- Package :
- Bulk
- Contact Arrangement :
- SPST-NO
- Package / Case :
- Dust Cover
- Pick-up Voltage (Max) :
- 16VDC
- LED Indicator :
- No
- Must Release Voltage :
- 4 VDC
- Packaging :
- Bulk
- Release Time :
- 2 ms
- Type :
- Power Relay
- Moisture Sensitivity Level (MSL) :
- --
- Product Type :
- Automotive Relays
- Datasheets
- 1393304-5
