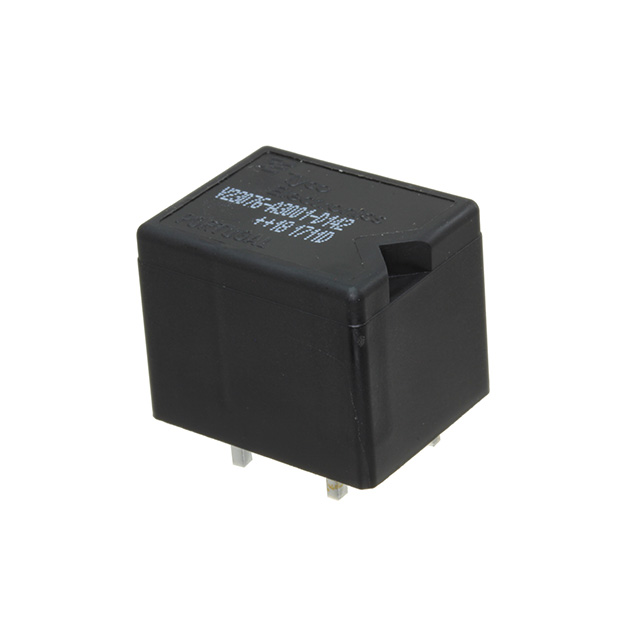

1393278-2
Or copy the link below:
- Mfr.Part #
- 1393278-2
- Manufacturer
- TE Connectivity Potter & Brumfield Relays
- Package / Case
- Datasheet
- Download
- Description
- V23076A3001D142T
- Stock
- 451
- In Stock ：
- 451
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity Potter & Brumfield Relays
- Product Category :
- Automotive Relays
- HTS Code :
- 8536.41.00.05
- Terminal Finish :
- Tin (Sn)
- Reference Standard :
- EIA; EN; IEC
- Relay Action :
- Momentary
- Packing Method :
- Bulk
- Coil Power :
- 1600mW
- Coil Resistance :
- 362Ohm
- JESD-609 Code :
- e3
- Mounting Feature :
- THROUGH HOLE-STRAIGHT MOUNT
- Contact (DC) Max Rating R Load :
- 45A@12VDC
- Physical Dimension :
- 23.3mm x 18.6mm x 18mm
- Body Breadth :
- 18.6 mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Coil Current(DC)-Max :
- 0.066A
- Operating Temperature (Max) :
- 105°C
- Contact Voltage(DC)-Max :
- 12V
- Surface Mount :
- No
- Coil Voltage(DC)-Max :
- 24V
- Release Time :
- 3 ms
- Contact/Output Supply Type :
- AC/DC
- Relay Type :
- POWER/SIGNAL RELAY
- Contact (AC) Max Rating R Load :
- 30A@12VAC
- Operate Time :
- 5 ms
- ECCN Code :
- EAR99
- Relay Function :
- SPST
- Body Height :
- 18mm
- Electrical Life :
- 200000 Cycle(s)
- Body Length or Diameter :
- 23.3mm
- Contact Voltage(AC)-Max :
- 12V
- Coil/Input Supply Type :
- DC
- Sealing :
- RT0/RT2
- Factory Lead Time :
- 13 Weeks
- Contact Current(AC)-Max :
- 30A
- Coil Operate Voltage(DC) :
- 14.1V
- Operating Temperature (Min) :
- -40°C
- Contact Current(DC)-Max :
- 45A
- RoHS Status :
- RoHS Compliant
- Coil Release Voltage(DC) :
- 2.4V
- Termination Type :
- Solder
- Datasheets
- 1393278-2
1393278-2 datasheet pdf and Power Relays, Over 2 Amps product details from TE Connectivity Potter & Brumfield Relays stock available at
