1393276-7
Or copy the link below:
- Mfr.Part #
- 1393276-7
- Manufacturer
- TE Connectivity Potter & Brumfield Relays
- Package / Case
- Datasheet
- Download
- Description

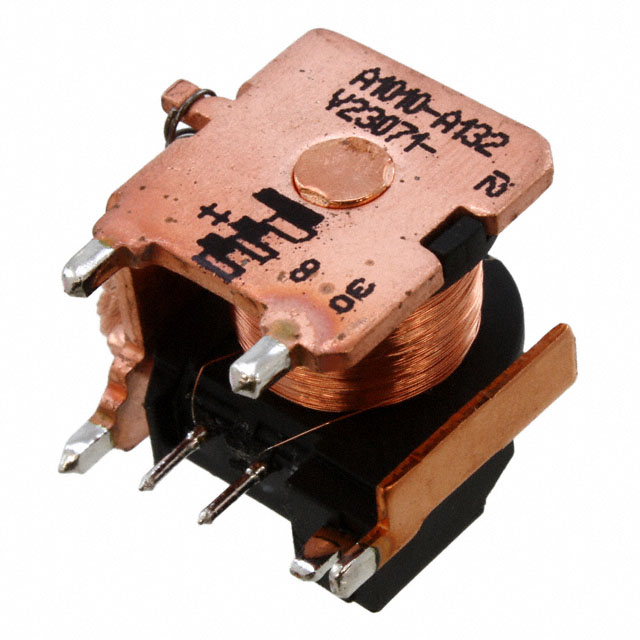

- RELAY AUTO SPST-NO 70A 24V
- Stock
- 39,195
- In Stock ：
- 39,195
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity Potter & Brumfield Relays
- Product Category :
- Automotive Relays
- Release Time :
- 3 ms
- Coil Voltage(DC)-Max :
- 24 V
- Features :
- --
- Termination Style :
- PC Pin
- Operate Time :
- 4 ms
- Packaging :
- Bulk
- Brand Name :
- CII
- Coil Voltage :
- 24VDC
- Contact Rating (Current) :
- 70A
- Coil Type :
- Non Latching
- Contact Material :
- Silver Nickel (AgNi)
- Body Height :
- 18 mm
- Turn Off Voltage (Min) :
- 2.4 VDC
- Contact Current(AC)-Max :
- 50 A
- Series :
- V23071
- Relay Type :
- POWER/SIGNAL RELAY
- Coil Power :
- 2250 mW
- Switching Voltage :
- 24VDC - Nom
- Terminal Length :
- 0.003 inch
- Electrical Life :
- 100000 Cycle(s)
- ECCN Code :
- EAR99
- Weight :
- 19 g
- Coil Resistance :
- 234 Ω
- Sealing :
- RT2
- Physical Dimension :
- 24.2mm x 18.6mm x 18mm
- Body Length or Diameter :
- 24.2 mm
- Coil/Input Supply Type :
- DC
- Mounting Feature :
- THROUGH HOLE-STRAIGHT MOUNT
- Mounting Type :
- Through Hole
- Relay Action :
- Momentary
- Packing Method :
- Box
- Termination Type :
- Solder
- Dielectric Strength Between Coil and Contacts :
- 500 Vrms
- Coil Operate Voltage(DC) :
- 14.1 V
- Moisture Sensitivity Level (MSL) :
- --
- Coil Release Voltage(DC) :
- 2.4 V
- Surface Mount :
- No
- Reach Compliance Code :
- Compliant
- HTS Code :
- 8536.41.00.50
- End Contact Material :
- Silver Nickel Oxide
- Contact Voltage(DC)-Max :
- 24 V
- Coil Current :
- 103mA
- Operating Temperature :
- -40°C ~ 85°C
- Package :
- Bulk
- Product Status :
- Obsolete
- Body Breadth :
- 18.6 mm
- PCB Hole Count :
- 7
- Contact/Output Supply Type :
- AC/DC
- Contact Voltage(AC)-Max :
- 24 V
- Relay Form :
- 1 FORM A
- Input Switching Control Type :
- Random
- Coil Current(DC)-Max :
- 0.1 A
- Turn On Voltage (Max) :
- 14.1 VDC
- Contact Form :
- SPST-NO (1 Form A)
- Contact Current(DC)-Max :
- 50 A
- Relay Function :
- SPST
- Must Release Voltage :
- 2.4 VDC
- Must Operate Voltage :
- 14.1 VDC
