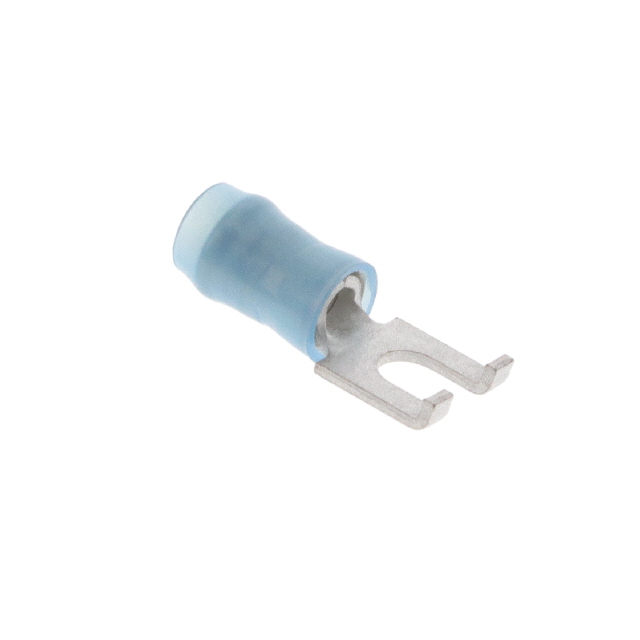

1377174-1
Or copy the link below:
- Mfr.Part #
- 1377174-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN SPADE TERM 14-16AWG #6 BLU
- Stock
- 1,500
- In Stock ：
- 1,500
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Spade Connectors
- Factory Lead Time :
- 19 Weeks
- Feature :
- Serrated Termination
- Tongue Inside Opening :
- 0.145 (3.68mm)
- Mounting Type :
- Free Hanging (In-Line)
- Stud Size :
- M3.5
- Series :
- PIDG
- Terminal Type :
- Flanged
- Stud/Tab Size :
- 6 Stud
- Insulated Wire Support :
- yes
- Terminal and Terminal Block Type :
- WIRE TERMINAL
- HTS Code :
- 8536.90.40.00
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Wire Gauge :
- 14-16 AWG
- Length - Termination :
- 0.404 10.26mm
- Contact Finish :
- Tin
- Termination :
- Crimp
- Length - Ring Center to Termination :
- 0.203 5.16mm
- Stud Diameter :
- 3.5052 mm
- Contact Material :
- Copper
- Heavy Duty :
- No
- Lifecycle Status :
- ACTIVE (Last Updated: 4 months ago)
- Color :
- Blue
- Insulation :
- Insulated
- Width - Outer Edges :
- 0.294 7.47mm
- RoHS Status :
- RoHS Compliant
- Insulation Diameter :
- 0.115 ~ 0.170 (2.92mm ~ 4.32mm)
- ECCN Code :
- EAR99
- Material - Insulation :
- Polyamide (PA), Nylon
- Published :
- 2018
- Length - Overall :
- 0.768 19.51mm
- ELV :
- Compliant
- Tongue Thickness :
- 840μm
- Packaging :
- Bulk
- Datasheets
- 1377174-1
1377174-1 datasheet pdf and Terminals - Spade Connectors product details from TE Connectivity AMP Connectors stock available at Xinshop
