1375965-1

Share

Or copy the link below:

Mfr.Part #
1375965-1
Manufacturer
TE Connectivity AMP Connectors
Package / Case
Datasheet
Download
Description
CONN NON-STKTHR PC/104+ 120P PCB
Stock
45,290
In Stock :
45,290

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
TE Connectivity AMP Connectors
Product Category :
Specialized
Factory Lead Time :
28 Weeks
Rated Current (Signal) :
2A
Plating Thickness :
15μin
Gender :
Receptacle
PCB Contact Pattern :
RECTANGULAR
Option :
GENERAL PURPOSE
Housing Material :
Nylon
Pitch :
0.079 2.00mm
Reliability :
COMMERCIAL
IEC Conformance :
No
Contact Style :
SQ PIN-SKT
Termination :
Solder
Material Flammability Rating :
UL94 V-0
Filter Feature :
No
Body Depth :
0.368 inch
Number of Rows :
4
DIN Conformance :
No
Contact Finish :
Gold
RoHS Status :
Non-RoHS Compliant
Contact Pattern :
RECTANGULAR
Mixed Contacts :
No
Mounting Type :
Through Hole
Contact Finish Thickness :
15.0μin 0.38μm
Total Number of Contacts :
120
Connector Type :
Non-Stackthrough, Unkeyed (PC/104)
Height :
9.35mm
Lead Free :
Contains Lead
Dielectric Withstanding Voltage :
500VAC V
Number Of PCB Rows :
4
Keyed :
No
Operating Temperature :
-55°C~105°C
Orientation :
Straight
Connector Style :
PC/104 Plus
Durability :
50 Cycles
Number of Conductors :
ONE
Flammability Rating :
UL94 V-0
MIL Conformance :
No
Color :
Black
Length :
60.2mm
Number of Positions :
120
Published :
2008
Pbfree Code :
No
Body Breadth :
0.315 inch
Width :
8mm
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Withdrawl Force-Min :
.6672 N
Insertion Force-Max :
1.251 N
ECCN Code :
EAR99
Feature :
Screwlocks (2)
Lead Pitch :
2mm
Series :
AMPMODU
Lead Length :
2.8448mm
Mating Contact Row Spacing :
0.079 inch
Insulation Resistance :
1GOhm
Reference Standard :
UL
Number of Positions Loaded :
All
Polarization Key :
POLARIZED HOUSING
Lifecycle Status :
ACTIVE (Last Updated: 6 days ago)
PCB Contact Row Spacing :
2.0066 mm
Contact Material :
Bronze
Packaging :
Bulk
Contact Resistance :
30mOhm
ELV :
Non-Compliant
Mount :
Through Hole
Datasheets
1375965-1
Introducing Specialized TE Connectivity AMP Connectors 1375965-1 from Chip IC,where excellence meets affordability. This product stands out with its Mounting Type:Through Hole, Operating Temperature:-55°C~105°C, 1375965-1 pinout, 1375965-1 datasheet PDF, 1375965-1 amp .Beyond Specialized TE Connectivity AMP Connectors 1375965-1 ,we also offer 6469025-1, 1892787-6, 0761703038, Our vast inventory has you covered. Contact us now for immediate solutions.

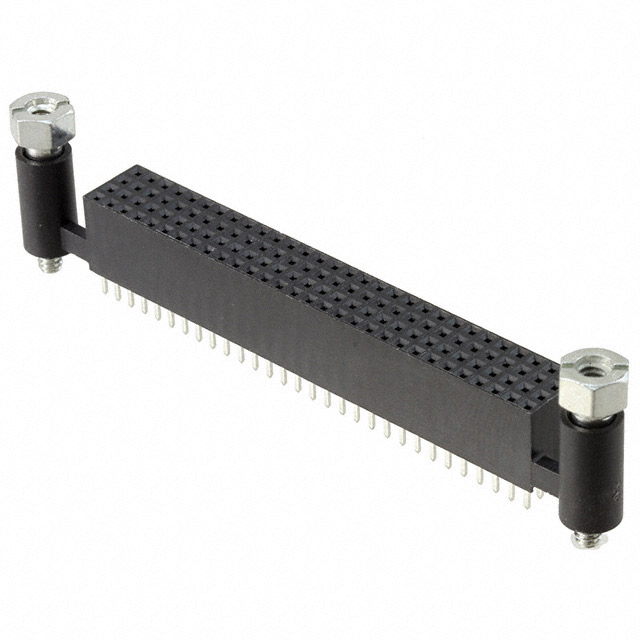

TE Connectivity AMP Connectors 1375965-1


AMPMODU Series Non-Stackthrough, Unkeyed (PC/104) Solder Gold Black 15.0μin 0.38μm 120 Positions Pitch: 0.079 2.00mm -55°C~105°C Bulk Through Hole

1375965-1 Overview


The packaging contains Non-Stackthrough, Unkeyed (PC/104).There is a Through Hole mounting type for the device.This product is packaged in a case marked Bulk.Product number AMPMODU belongs to the AMPMODU Series.In many ways, it is more powerful due to its Screwlocks (2) feature.There is a Through Hole mount on the part.This device operates at a temperature of -55°C~105°C.

1375965-1 Features


AMPMODU series


1375965-1 Applications


There are a lot of TE Connectivity AMP Connectors
1375965-1 Backplane Connectors applications.


  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
  • Blowers
  • Control panels
  • Electrical substations
