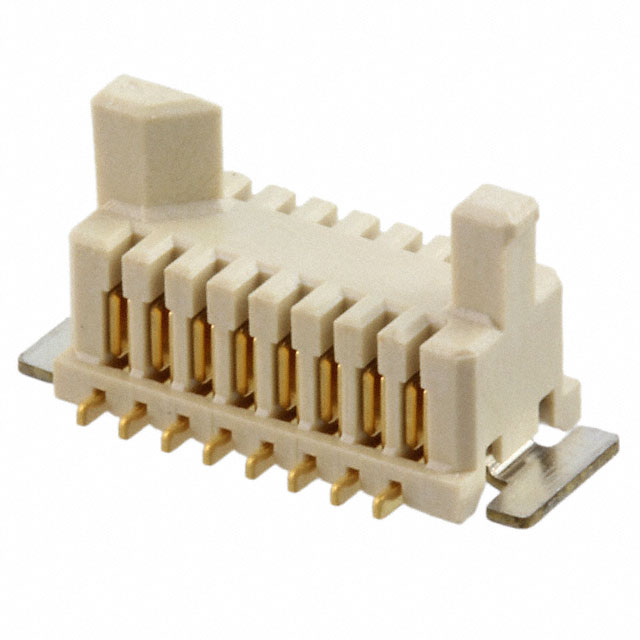

1375870-6

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Headers, Receptacles, Female Sockets

Series :

AMPMODU Micro

ECCN Code :

EAR99

Insulation Color :

Natural

Housing Material :

Polymer

Number of Positions Loaded :

All

RoHS Status :

Non-RoHS Compliant

Contact Finish Thickness - Mating :

30.0μin 0.76μm

Reliability :

COMMERCIAL

Insulation Resistance :

500MOhm

Lifecycle Status :

ACTIVE (Last Updated: 6 days ago)

Factory Lead Time :

14 Weeks

Termination :

Solder

Voltage - Rated :

30VAC

Contact Type :

Female Blade Socket

Fastening Type :

Friction Lock

Mounting Type :

Surface Mount

Contact Current Rating :

1A

Mount :

Surface Mount

Reference Standard :

UL

Number of Conductors :

ONE

Number Of PCB Rows :

2

Flammability Rating :

UL94 V-0

Approval Agency :

UL

HTS Code :

8536.69.40.40

Mating Retention :

Without

Contact Gender :

FEMALE

Feature :

Solder Retention

Operating Temperature :

-55°C~85°C

Lead Free :

Contains Lead

Voltage - Rated AC :

30V

Connector Type :

Receptacle

Terminal Pitch :

0.7874mm

Style :

Board to Cable/Wire

Packaging :

Cut Tape (CT)

Contact Finish - Mating :

Gold

Contact Plating :

Gold, Tin

ELV :

Non-Compliant

Pitch - Mating :

0.031 0.80mm

Number of Positions :

16

Contact Finish Thickness - Post :

5.11μin 0.130μm

Number of Rows :

2

Insulation Height :

0.197 5.00mm

Operating Supply Voltage :

30V

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Insulation Material :

Liquid Crystal Polymer (LCP)

Radiation Hardening :

No

Total Number of Contacts :

16

Contact Material :

Phosphor Bronze

Wire/Cable Type :

Discrete

Mating Contact Pitch :

0.031 inch

Color :

Beige

PCB Mount Retention :

With

Plating Thickness :

30μin

Orientation :

Vertical

Current Rating :

750mA

Published :

2009

Material Flammability Rating :

UL94 V-0
