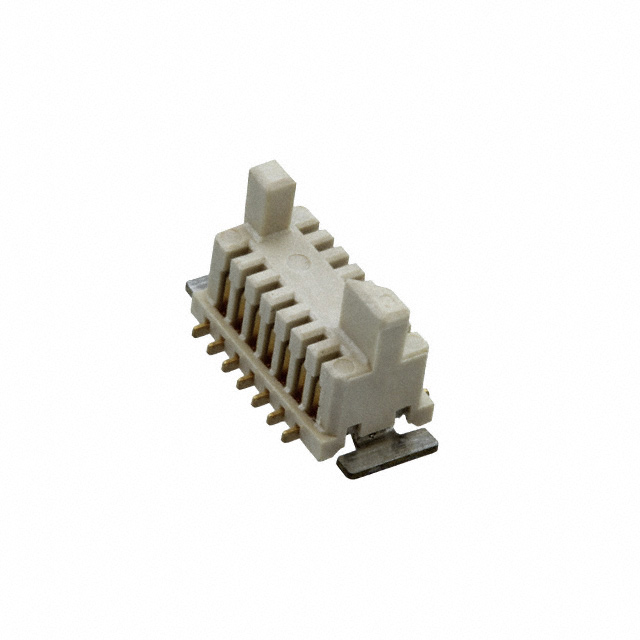

1375870-5
Or copy the link below:
- Mfr.Part #
- 1375870-5
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 14POS 0.031 GOLD SMD
- Stock
- 14,382
- In Stock ：
- 14,382
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Receptacles, Female Sockets
- Total Number of Contacts :
- 14
- Reference Standard :
- UL
- Material Flammability Rating :
- UL94 V-0
- Housing Material :
- Polymer
- Contact Material :
- Phosphor Bronze
- Packaging :
- Cut Tape (CT)
- Color :
- Beige
- Flammability Rating :
- UL94 V-0
- Operating Supply Voltage :
- 30V
- RoHS Status :
- Non-RoHS Compliant
- Rated Current (Signal) :
- 1A
- Contact Finish Thickness - Post :
- 5.11μin 0.130μm
- Voltage - Rated AC :
- 30V
- Number of Conductors :
- ONE
- Contact Finish - Mating :
- Gold
- Lead Free :
- Contains Lead
- Insulation Resistance :
- 500MOhm
- Insulation Color :
- Natural
- Number of Positions Loaded :
- All
- Voltage - Rated :
- 30VAC
- Approval Agency :
- UL
- Contact Gender :
- FEMALE
- Number of Rows :
- 2
- Wire/Cable Type :
- Discrete
- Mount :
- Surface Mount
- Option :
- GENERAL PURPOSE
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Fastening Type :
- Friction Lock
- Length :
- 8.95mm
- Depth :
- 4.8mm
- Connector Type :
- Receptacle
- Published :
- 2009
- Filter Feature :
- No
- Pitch - Mating :
- 0.031 0.80mm
- Mounting Type :
- Surface Mount
- ELV :
- Non-Compliant
- Termination :
- Solder
- Series :
- AMPMODU Micro
- Operating Temperature :
- -55°C~85°C
- UL Flammability Code :
- 94V-0
- Number of Positions :
- 14
- Contact Current Rating :
- 1A
- Contact Resistance :
- 25mOhm
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Mixed Contacts :
- No
- Orientation :
- Vertical
- Factory Lead Time :
- 14 Weeks
- Insulation Height :
- 0.197 5.00mm
- Feature :
- Solder Retention
- Style :
- Board to Cable/Wire
- Insulation Material :
- Liquid Crystal Polymer (LCP)
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Radiation Hardening :
- No
- Mating Retention :
- Without
- Contact Plating :
- Gold, Tin
- Plating Thickness :
- 30μin
- Current Rating :
- 750mA
- PCB Mount Retention :
- With
- Max Voltage Rating (AC) :
- 30V
- Contact Type :
- Female Blade Socket
- Terminal Pitch :
- 0.8mm
- Datasheets
- 1375870-5
2 Rows Receptacle Solder Phosphor Bronze Surface Mount Cut Tape (CT) Gold Liquid Crystal Polymer (LCP) 14 Positions Female Blade Socket
1375870-5 Overview
Currently, it is packaged in Receptacle.The mounting type of the device is Surface Mount.A Cut Tape (CT) case is used to package the product.A product of the AMPMODU Micro Series, it belongs to the range of products of that series.A number of features make the Solder Retention feature more powerful.Surface Mount represents the mounting point for the part.You're going to need 30V to power this memory.-55°C~85°C Operating Temperature is the default operating temperature for the device.
1375870-5 Features
AMPMODU Micro series
1375870-5 Applications
There are a lot of TE Connectivity AMP Connectors
1375870-5 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
